Hammond, C4 Series, Modular Server Cabinet System, 42U, 36``D, 24`W
SKU:C4F247336BK1
$1,478.00
Unit price /
Unavailable

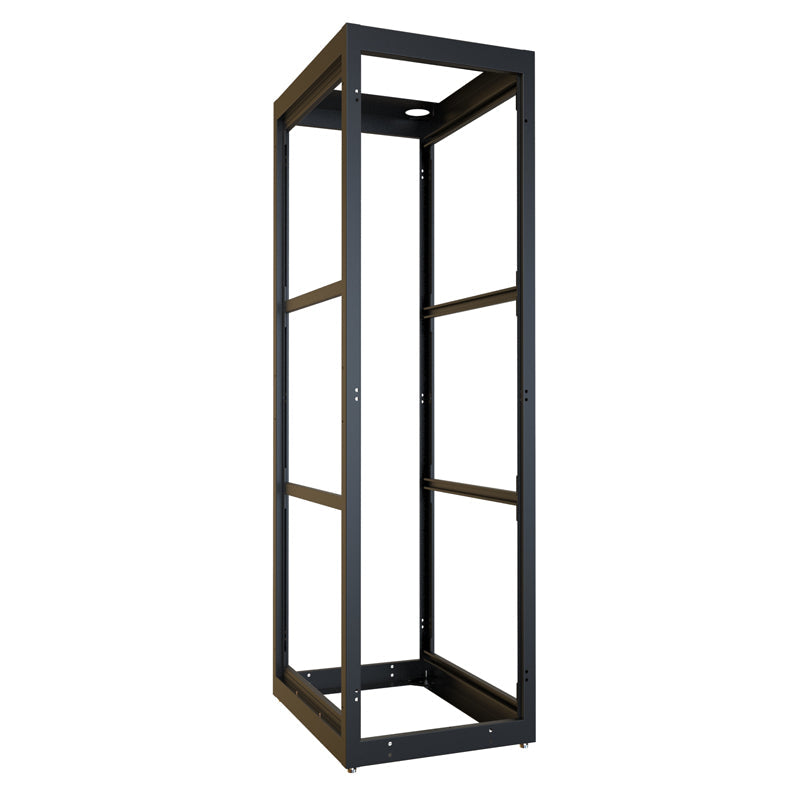

Modular Server Rack CabinetC4 Series
Available Options Include:
24U, 42U and 44U mounting heights.
24" and 30" overall frame widths.
24” wide frame includes generous cabling space and four (4) 3.5” wide cable entry holes on the top.
30” wide frame includes extra generous cabling space and support for up to four optional vertical cable managers
31.5", 36" and 42" overall frame depths.
All frames include four (4) levelling feet and support optional casters.
19" and 23" mounting rails are available in square-hole punched or drilled and tapped 10-32.
Flush-mounted doors with quarter-turn lock available in solid, tinted window, vented full or split/barn.
Side panels are available in both solid and vented for thermal induction.
One (1) interchangeable top panel opening; available in solid, vented, fan tops with or without fans installed.
One (1) interchangeable bottom panel opening, available in solid.
Vertical cable managers are available in-tray, enclosed metal or fingers versions.
Specifications
Cabinet frame constructed in 14-gauge steel with 12-gauge steel reinforced corner brackets.
Cabinet doors and side panels constructed in 16-gauge steel.
19" mounting rails are constructed in 12-gauge steel (square hole punched) or 10-gauge steel (drilled and tapped 10-32).
Rails include rack unit indicators and are Zinc-plated to provide superior surface areas for equipment grounding.
C-channel struts provide cabinet strength, ease and flexibility to adjust mounting rails.
*When assembled by Hammond,the cabinet is UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Static Load tested to 12,000 lbs (5,443 kg).
Seismic rated up to 1,200 lbs (544 kg) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10. Requires a seismic bolt-down kit such as theC4K-Z4(sold separately).
Grounding studs are provided on the frame as well as side panels and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.
