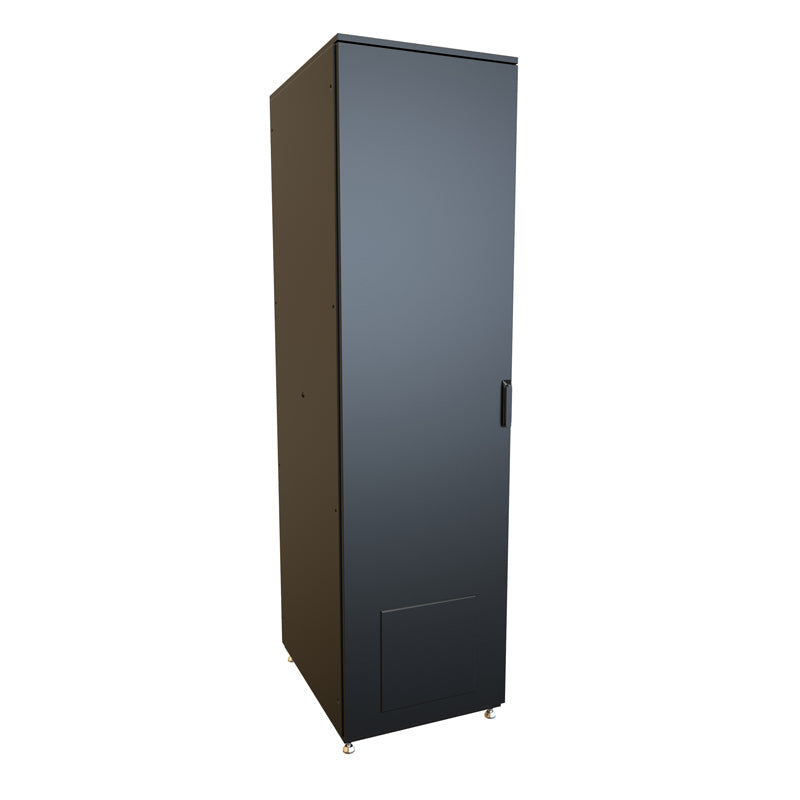

Hammond HDME Series, Type 12 Dust-Tight Server Cabinet 42U 39d
SKU:HDME20610BK
$7,969.00
Unit price /
Unavailable
NEMA Rated Dust-Tight Server CabinetHDME Series
Features
Front and rear solid doors include an installed gland plate for cooling options. Doors open to 135°. Window door option available.
Reinforced top panel with provisions for optionalHDMELBlifting eye bolts.
Frames can be joined together with an optional joining kit.
A black, cellular neoprene gasket provides tight and secure seal protection from moisture, dust and air contaminants.
Available in 42U and 47U mounting heights.
Available 24" wide. 31.5" is available as a special order.
Available in 31.5" and 39.37" overall depths.
Includes adjustable depth mount rails.
Specifications
Cabinet frame, doors and side panels are constructed in 14-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
Tested to nearly double the suggested load rating of 1,500 lbs (680 kg).
NEMA Rated for UL 508A Type 12 and CSA Type 12. Complies with NEMA Type 12 and IEC 60529 IP54.
Lift-tested to 900 lbs (408 kg) of equipment load when used with ourHDMELBlifting eye bolts.
Grounding studs are provided on the frame as well as side panels and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black powder paint. Also available in textured light gray upon request.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.
Included Components
Welded steel frame with factory-installed nylon levelling feet, ground studs, and mounting points for optional casters.
Two (2) pairs of adjustable depth EIA compliant square hole punched mounting rails.
Two (2) solid removable side panels.
Two (2) solid doors with
one (1) installed gland plate
one (1) die-cast locking swing handle
Two (2) door keys
One (1) solid top panel.
Two (2) bottom panels with gland plates
Four (4) levelling feet
Starter pack ofCAGKIT1032-50 screws
