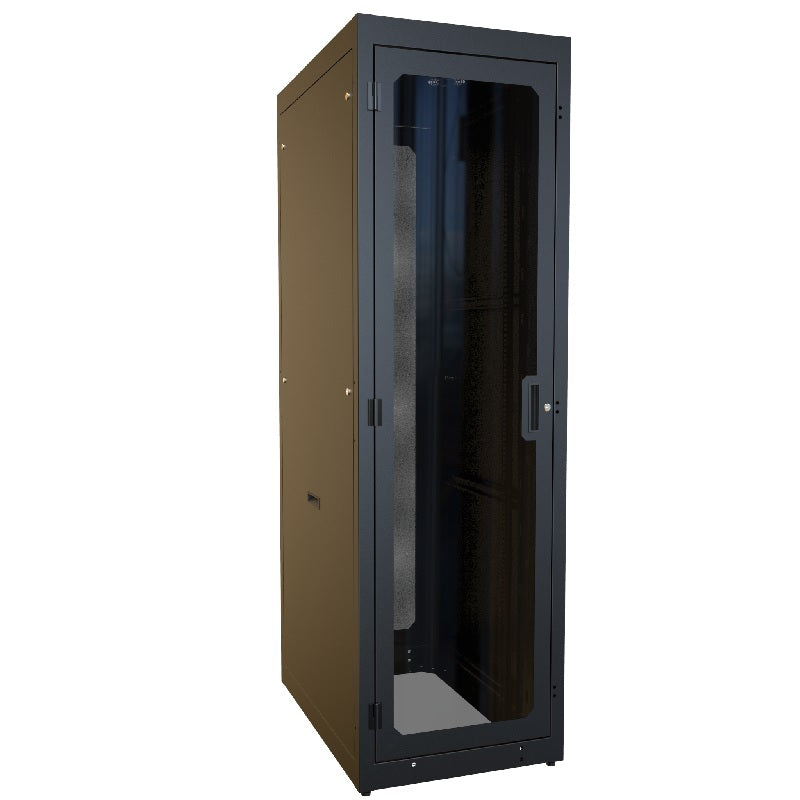

Hammond Pre-Assembled C4 SERVER Cabinet C4RR Series 78x24x36 42U
SKU:C4RR247336SBK1
$4,675.00
Unit price /
Unavailable
Seismic Server Rack Cabinet C4RR Series
Features
Available in 42U and 44U mounting heights.
24” Width Frame Features:
Generous cabling space
The cabinet top includes four (4) 3.5” wide cable entry holes.
30” Width Frame Features:
Mounting rails include cable-tie support and cable pass-through holes.
The cabinet top includes four (4) 3.5” wide cable entry holes.
Support for vertical cable managers without obstructing mounting rails.
Available in 31.5", 36" and 42" overall depths.
C-channel struts provide cabinet strength, ease and flexibility to adjust mounting rails.
Flush-mounted doors with quarter-turn lock.
One (1) interchangeable top panel.
Specifications
Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and side panels constructed in 16-gauge steel.
Square hole 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Static Load tested to 12,000 lbs (5,443 kg).
Seismic rated up to 1,200 lbs (544 kg) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2015, ASCE 7-16 and ASCE 7-10. Requires a seismic bolt-down kit such as theC4K-Z4(sold separately).
Grounding studs are provided on the frame as well as side panels and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.
Included Components
All configurations include:
Welded steel frame with factory-installed nylon levelling feet, ground studs, and mounting points for optional casters.
Two (2) pairs of adjustable depth EIA compliant square hole punched mounting rails.
Starter pack ofCAGKIT1032-25screws and cage nuts.
Two (2) removable side panels (with 1/4 turn latches).
One (1) four (4) fan cutout top panel.
C4RR "D" Cabinet Specific Components include:
One (1) window front door with a quarter-turn lock.
One (1) perforated rear door (65% open area vented) with quarter-turn lock.
One (1) vertical cable tray with button PDU mounting.
C4RR "S" CabinetSpecific Components include:
One (1) perforated front door (65% open area vented) with quarter-turn lock.
One (1) perforated split/barn rear door (65% open area vented) with quarter-turn lock.
Two (2) vertical cable trays with button PDU mounting.
