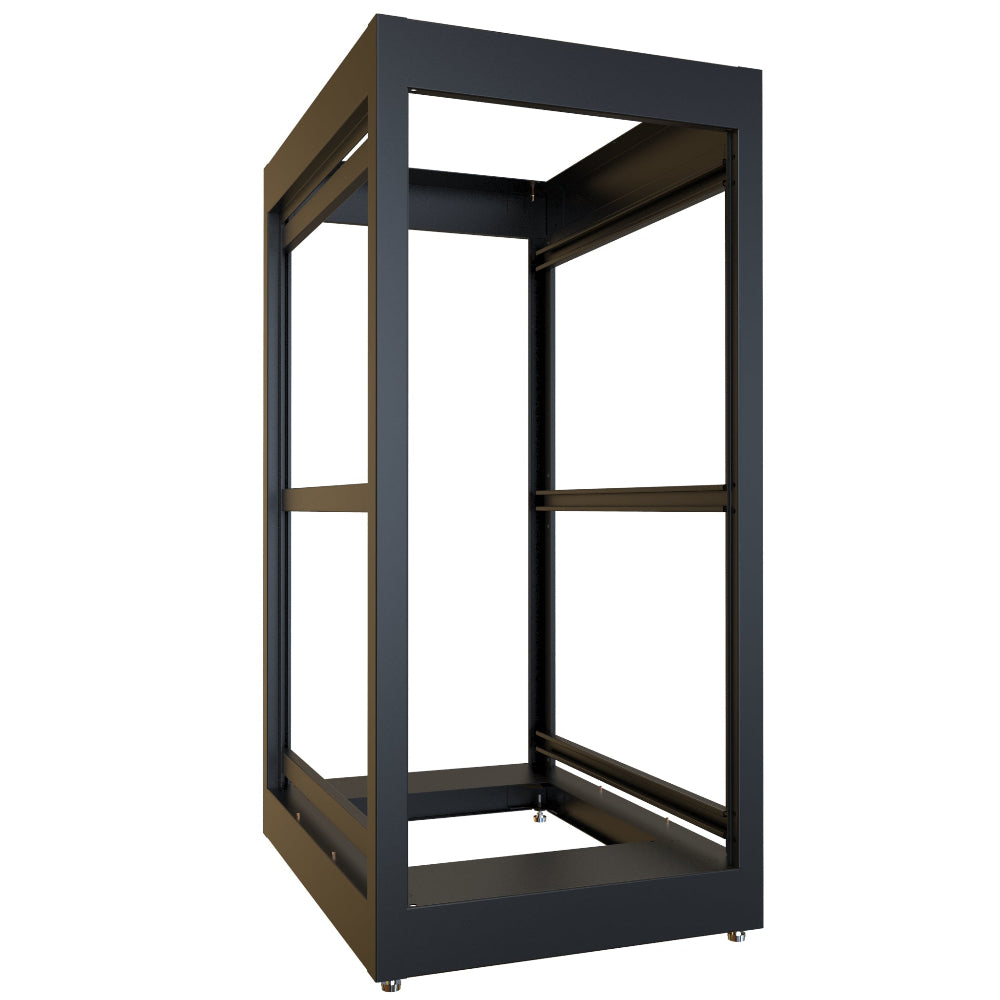

Hammond C2 Series, Modular Equipment Cabinet System 50x23x32 24U

Hammond Modular Equipment Cabinet System C2 Series

• Constructed in:
• 14-gauge steel (body)
• 16-gauge steel (doors and side panels)
• EIA-310-D compliant 10-32 tapped or square hole punched rails with permanent rack unit labels.
• Overall width of 23.00" (584 mm) maintains a standard 19.00" panel width.
• Panel rails are NOT included.

• Infinite-depth setting using C-channel struts.
• Zinc-plated mounting rails provide superior surface areas for equipment grounding.
• Four (4) leveling feet are included with support for optional casters.
• Grounding studs provided on frame as well as side panels and doors.
• Tested to nearly double the suggested load rating of 1,500 lbs.
• RoHS Compliant.
• Manufactured in North America.
