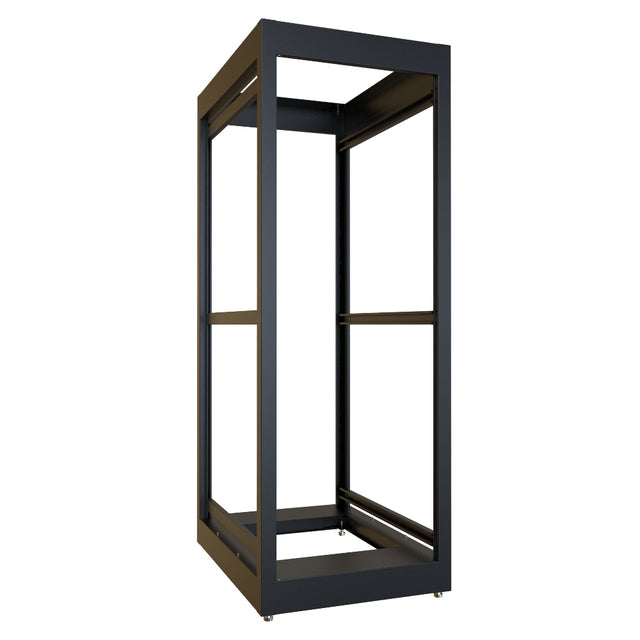

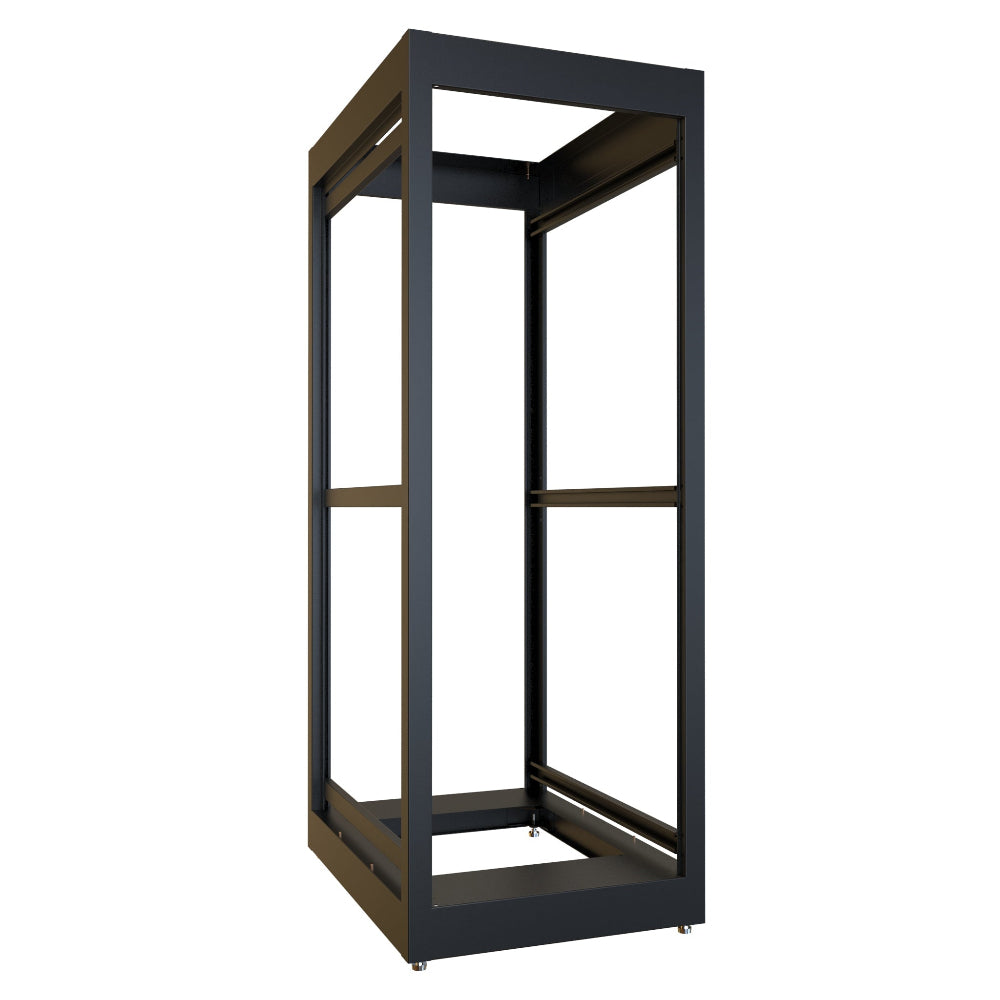

Hammond C2 Series, Modular Equipment Cabinet System 63x23x32 32U
$1,310.00
Unit price
/
Unavailable
Hammond C2 Series, Modular Equipment Cabinet System 63x23x32 32U is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Hammond C2 Series, Modular Equipment Cabinet System 63x23x32 32U
$1,310.00
Unit price
/
Unavailable
Description
Description
Hammond Modular Equipment Cabinet System C2 Series
Features
- Constructed in:
- 14-gauge steel (body)
- 16-gauge steel (doors and side panels)
- EIA-310-D compliant 10-32 tapped or square hole punched rails with permanent rack unit labels.
- Overall width of 23.00" (584 mm) maintains a standard 19.00" panel width.
- Panel rails are NOT included.
Specifications
- Infinite-depth setting using C-channel struts.
- Zinc-plated mounting rails provide superior surface areas for equipment grounding.
- Four (4) leveling feet are included with support for optional casters.
- Grounding studs provided on frame as well as side panels and doors.
- Tested to nearly double the suggested load rating of 1,500 lbs.
- RoHS Compliant.
- Manufactured in North America.
