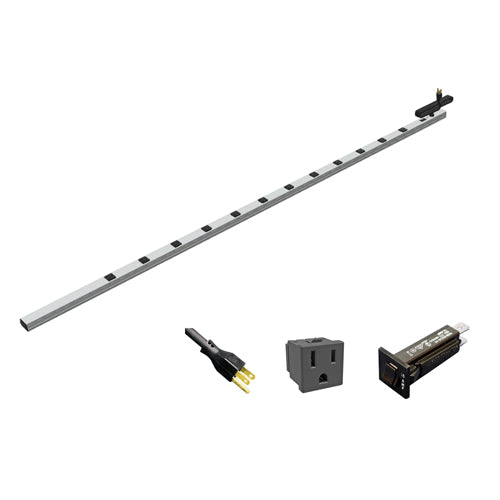

Hammond, 1588-9 JV Series, PDU 77" - 15A - 12 Outlet 15' Shielded Cord 5-15P

1588H12B1JV

Vertical Basic PDU with Shielded Cord 1588-9-JV Series

15A or 20A | 120V Single-Phase | 5-15R or 5-20R Outlets

Spec Sheet

Features

  • Low-profile slim design constructed of rugged light weight aluminum.
  • Designed for a variety of applications, specifically where electromagnetic or radio frequency interference is a concern:
    • Shielded cord reduces EMI/ RFI and "dirty" power from utilities.
    • Shielding is by way of 100% coverage in aluminum mylar foil with a 20 gauge drain wire.
  • Each outlet strip includes a hardware mounting kit. Order P/N: 1585CLIP for additional hardware kit.
  • Includes toolless PDU button mounting provision.
  • Receptacles are 1” square and are equally spaced over the length of the power strip.
  • With on/off switch and 15 or 20 Amp circuit breaker.

Specifications

  • Heavy duty cord, either 12 gauge (12/3 SJT) or 14 gauge (14/3 SJT) wire for extreme temperature ranges and integral molded plug.
  • Plug types for 15 Amp models are NEMA 5-15P straight blade or NEMA L5-15P locking type.
  • Plug types for 20 Amp models are NEMA 5-20P straight blade or NEMA L5-20P locking type.
  • Rated 15 or 20 amps, 120 volts.
  • UL/cUL Listed Standard UL1363 file No. E166039 & CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04
  • NOTE #1: Outlet strips can NOT be used between the front & rear panel rails of rack cabinets as they (and the equipment plugs) will interfere with mounted equipment and mounted accessories.
  • NOTE #2: To properly use on rack cabinets, allow sufficient depth BEHIND the rear panel rails for vertically mounting to the cabinet.
  • TAA compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America.
