1588H12A1

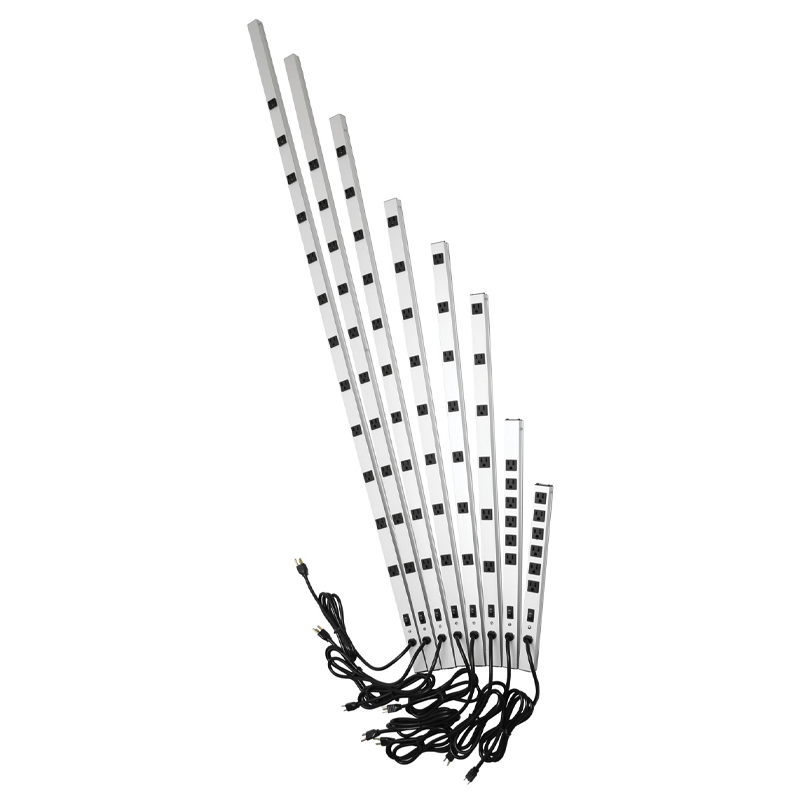

Hammond, 15A 12 Outlet Vertical Strip w/ switch, 6 ft. cord - 77" Long

Hammond, 1588 Series, 15Amp Vert Rmount 12 Outlet Strip,

Features

  • Designed to have a low-profile our strips are just 1 5/8” wide by 1 3/8“ high.
  • Constructed of rugged light weight aluminum.
  • Designed for a variety of applications:
  • Install in your server cabinets
  • Wall mount cabinets
  • Open frame racks
  • Or install horizontally above your work bench.
  • Each outlet strip included a hardware mounting kit. Order P/N: 1585CLIP for additional hardware kit.
  • Receptacles are 1” square and are equally spaced over the length of the power strip.
  • With on/off switch or pilot light and 15 Amp circuit breaker.
  • Plug type available is a NEMA 5-15P straight blade.
  • Click here for our surge protected version.

Specifications

  • Heavy duty 14 gauge wire cord - 14/3 SJT type for extreme temperature ranges and integral molded plug.
  • Plug types available are NEMA 5-15P straight blade or NEMA L5-15P locking type.
  • Rated 15 amps, 120 volts.
  • CSA certified, Standards C22.2 (No. 21-95 and No. 42-99)
  • UL listed, Standard UL1363 - file # E166039
  • NOTE #1: Outlet strips can NOT be used between the front & rear panel rails of rack cabinets as they (and the equipment plugs) will interfere with mounted equipment and mounted accessories.
  • NOTE #2: To properly use on rack cabinets, allow sufficient depth BEHIND the rear panel rails for vertically mounting to the cabinet.
Accessories
  • Vertical Outlet Strip Mounting Clip Kit 1585CLIP Series
