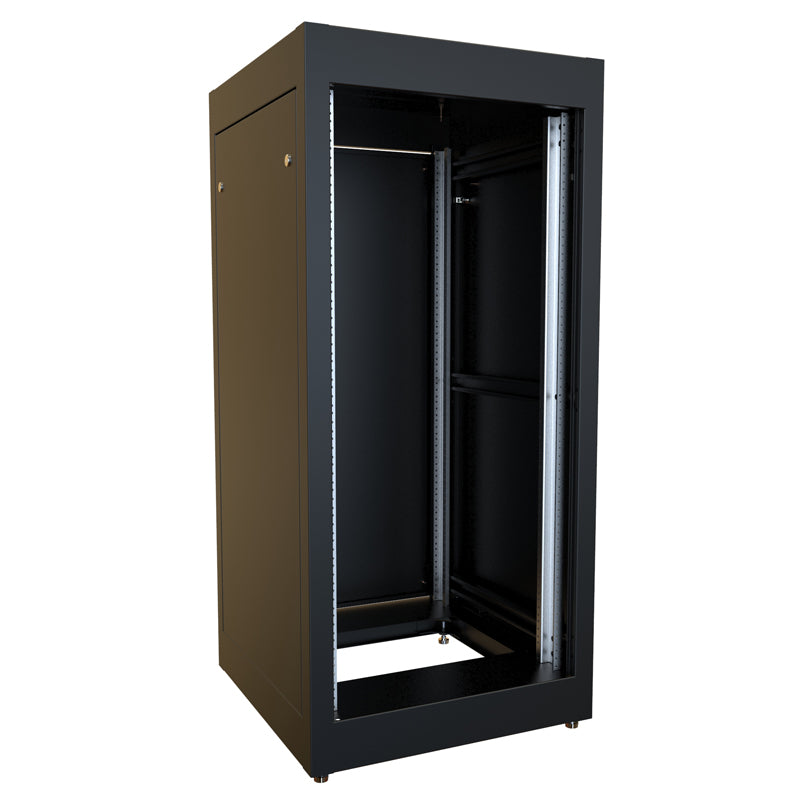

Hammond C2RR Series, Rack Cabinet

Features

• Available in 24U, 36U, 40U and 45U mounting heights.
• Available in 23” overall width (19" mounting width).
• Available in 23.62" and 31.5" overall depths.
• C-channel struts provide cabinet strength, ease and flexibility to adjust mounting rails.
• Flush-mounted doors with quarter-turn lock.
• Solid side panels.
• One (1) interchangeable top panel.

Specifications

• Cabinet frame constructed in 14-gauge steel with 12-gauge steel reinforced corner brackets.
• Cabinet doors and side panels constructed in 16-gauge steel.
• Drilled and 10-32 tapped flange 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
• Load rated for up to 1,500 lbs (680 kg).
• Grounding studs are provided on the frame as well as side panels and doors. Front and rear studs on cabinet frame conform to PET.
• Finished in textured RAL9005 black or RAL 7035 light gray powder paint.
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.

Included Components

• All configurations include:
  • Welded steel frame with factory-installed nylon levelling feet, ground studs, and mounting points for optional casters.
  • Two (2) pairs of adjustable depth EIA compliant 10-32 tapped flange mounting rails.
    • Starter pack of SCREW1032-25 screws.
  • Two (2) removable side panels (with 1/4 turn latches).

• C2RR Series Specific Components Include:
  • One (1) solid locking door (Can be used as either front or rear door)
  • One (1) solid top panel
