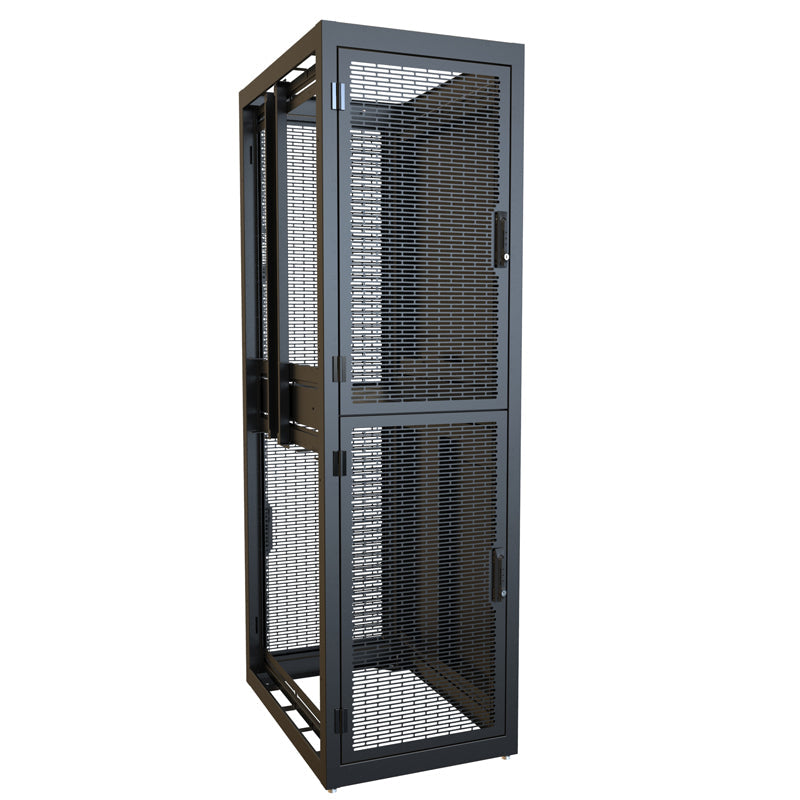

Hammond CLC Series Co Location 2 Bay/ 21U 48" Deep 44U

Hammond CLC Series, Co Location Cabinet System

Features

• Available in 44U mounting height.
• Available in 36”, 42” and 48" depths.
• One single frame allows multiple bay configurations.
• Compatible with containment system and cable-trough accessories.
• Flush-mounted doors with locking swing handle.
• Side cable pass-thru knockouts.
• Optional solid side panels.
• Optional interchangeable top panels.
• CLC top panels that include an opening are compatible with:
  • C2T1923** C2 Top Panel
  • CLCH Passive Air Chimney

Specifications

• Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
• Cabinet doors and side panels constructed in 16-gauge mild steel.
• Square hole 19" mounting rails are constructed in 12-gauge mild steel and include rack unit indicators.
• Where applicable, the divider shelves are constructed of reinforced 16-gauge steel.
  • The shelves are designed to support the most robust of equipment such as tower servers.
• UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Static Load tested to 12,000 lbs (5,443 kg).
• Grounding studs bonded to frame, side panels and doors. Front and rear studs on cabinet frame conform to PET.
• Finished in textured RAL9005 black powder paint.
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.

PCI DSS Compliance

The CLC series is PCI-Compliant when:

• Multiple cabinets are connected together and/or the open side is closed in using the appropriate side panel (listed in the accessory table below).
• The cable manager security plates CLCCMSP are installed.
• The cable manager security covers CLCCMSC are installed.

Included Components

• Welded steel frame with factory-installed nylon levelling feet, ground studs, and mounting points for optional casters.
• Two (2) pairs (Per bay) of adjustable depth EIA compliant square hole punched mounting rails.
• One (1) removable side panel (with 1/4 turn latches). An additional side panel is sold separately.
• Two (2) (Per bay) perforated front door (65% open area vented) with locking swing handle.
• Vented bay divider shelf with rear removable panels for vertical PDU installation.
• Mounting hardware is not included and is sold separately. We suggest the CAGKIT1032-100.

Note: Cabinet TOP panels are NOT included and are sold separately.
