Hammond CLC Series Co Location 3 Bay/14U 36" Deep 44U

Name: Hammond CLC Series Co Location 3 Bay/14U 36" Deep 44U
Brand: HAMMAN
SKU: CLC3B36BK
Price: 6694.0 CAD
Availability: InStock

SKU: CLC3B36BK

$6,694.00

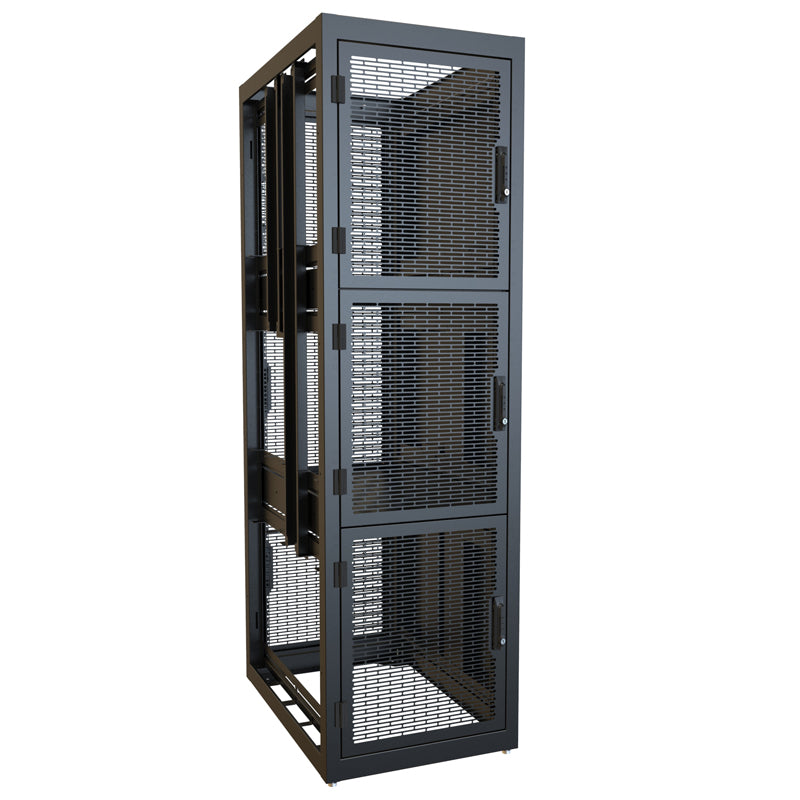

Hammond CLC Series, Co Location Cabinet System

Features

Available in 44U mounting height.
Available in 36”, 42” and 48" depths.
One single frame allows multiple bay configurations.
Compatible with containment system and cable-trough accessories.
Flush-mounted doors with locking swing handle.
Side cable pass-thru knockouts.
Optional solid side panels.
Optional interchangeable top panels.
CLC top panels that include an opening are compatible with:
- C2T1923** C2 Top Panel
- CLCH Passive Air Chimney

Specifications

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel and include rack unit indicators.
Where applicable, the divider shelves are constructed of reinforced 16-gauge steel.
- The shelves are designed to support the most robust of equipment such as tower servers.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to frame, side panels and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black powder paint.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

PCI DSS Compliance

The CLC series is PCI-Compliant when:

Multiple cabinets are connected together and/or the open side is closed in using the appropriate side panel (listed in the accessory table below).
The cable manager security plates CLCCMSP are installed.
The cable manager security covers CLCCMSC are installed.

Included Components

Welded steel frame with factory-installed nylon levelling feet, ground studs, and mounting points for optional casters.
Two (2) pairs (Per bay) of adjustable depth EIA compliant square hole punched mounting rails.
One (1) removable side panel (with 1/4 turn latches). An additional side panel is sold separately.
Two (2) (Per bay) perforated front door (65% open area vented) with locking swing handle.
Vented bay divider shelf with rear removable panels for vertical PDU installation.
Mounting hardware is not included and is sold separately. We suggest the CAGKIT1032-100.

Note: Cabinet TOP panels are NOT included and are sold separately.
