DC4R4448

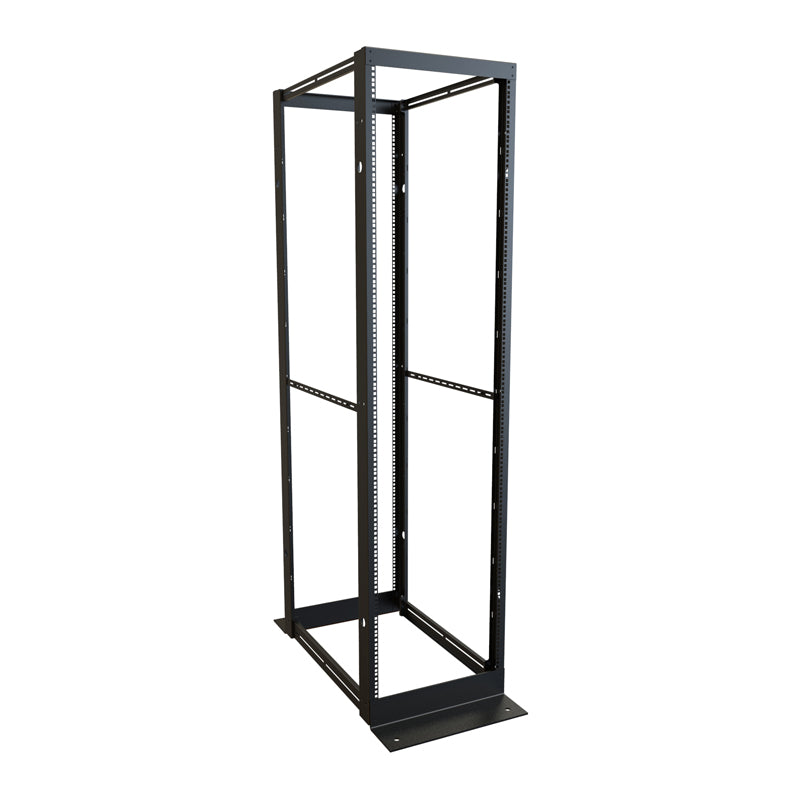

Hammond, DC4R Series, Adjustable Depth K/down Steel 4-Post Rack, 44U, 48"D

Hammond, DC4R Series, Adjustable Depth K/down Steel 4-Post Rack

The all new Hammond DC4R Open Rack series is one of the most economical solutions to house IT equipment in wiring closets or data centers. In situations where the wiring closet itself is under lock and key and accessed by a limited number of people, full cabinets having locking doors and side panels may not be required resulting in a significant cost savings.


Features

  • Available in 24U and 44U and in two convenient adjusting depths.
    • 24”-36” for standard rackmount equipment.
    • 32”-48” for extra deep equipment.
  • Includes two (2) pairs of 19” mounting EIA-310-D compliant square-hole rails.
    • Optional pair of rails available for multiple mounting depths.
  • Mounting rails include permanent rack unit space indicators.
  • Rail depth L-bracket restrict the installer from over-extending the rack. This ensures the integrity of the rack.
  • Includes one (1) set of two (2) horizontal cable manager bars. Additional cable manager bars available by ordering part number DC4RSHCM.
  • Finished in smooth black powder paint.

Specifications
  • Constructed of 12-gauge steel.
  • Suggested load capacity of 2,000 lb.
  • RoHS Compliant.
  • Manufactured in North America.
