DNRR63HDKB

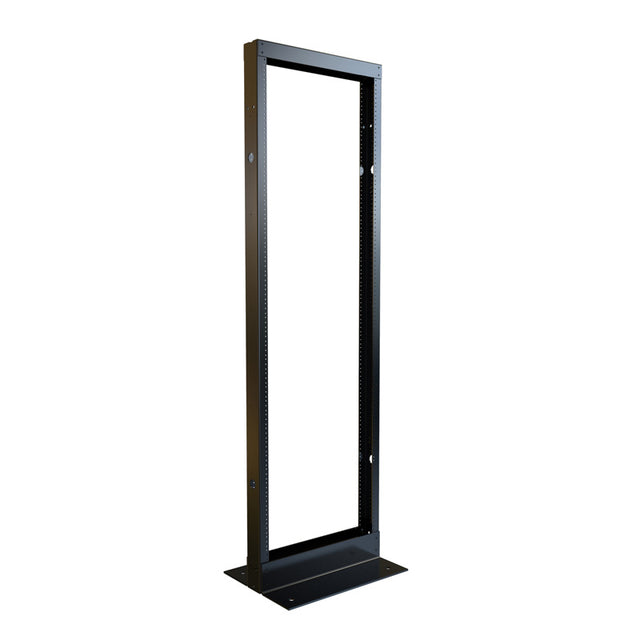

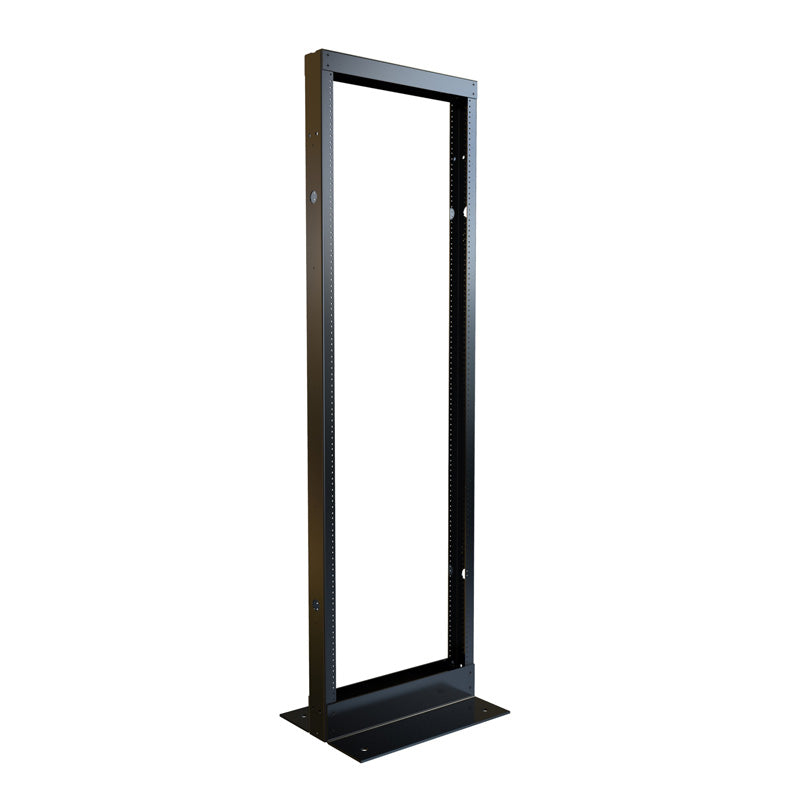

Hammond, DNRRHDKB Series, Knockdown Steel 2-Post Heavy Duty Robust Rack, 36U

Hammond, DNRRHDKB Series, Knockdown Steel 2-Post Heavy Duty Robust Rack


When strength and reliability is the highest priority, be sure to choose the Data/Networking Robust Rack (DNRR) from Hammond Manufacturing. Designed to support your rack mount infrastructure, regardless of the application, the DNRR includes premium features not found on most other racks.

Features


  • Weighing in at just over 75 lbs., the DNRR Heavy Duty Knockdown Series boasts a 10-Gauge steel frame which is the thickest steel rack on the market.
  • Tested to nearly double the suggested load rating of 1,200 lbs, Hammond engineered the DNRR**HDKB to exceed your weight expectations.
  • The knockdown self-squaring design takes just minutes to assemble.
  • Our automated tapping assembly provides EIA-310-D compliant tapped rails on both the front and back to ensure flexibility when mounting equipment.
  • When connecting multiple racks together, Hammond provided a 1.25” cable pass-thru. In addition we added numerous tapped and non-tapped holes for mounting power distribution, cable management and other accessories.
  • Includes two (2) pairs of integrated 10-32 ground studs, spaced 5/8” apart. Stud pairs are conveniently located across from each other inside the rail channel. For added convenience, a pair is located near the top of the rack, while the other at lower side.
  • To keep it looking great, the DNRR undergoes a three-stage paint process which includes a coat of premium smooth black powder paint.
  • Before sending the DNRR on it’s way we cover the rails and base with a thick layer of cardboard to prevent any damage that may occur during transportation.
  • RoHS Compliant.
  • Manufactured in North America.
