DRZ477

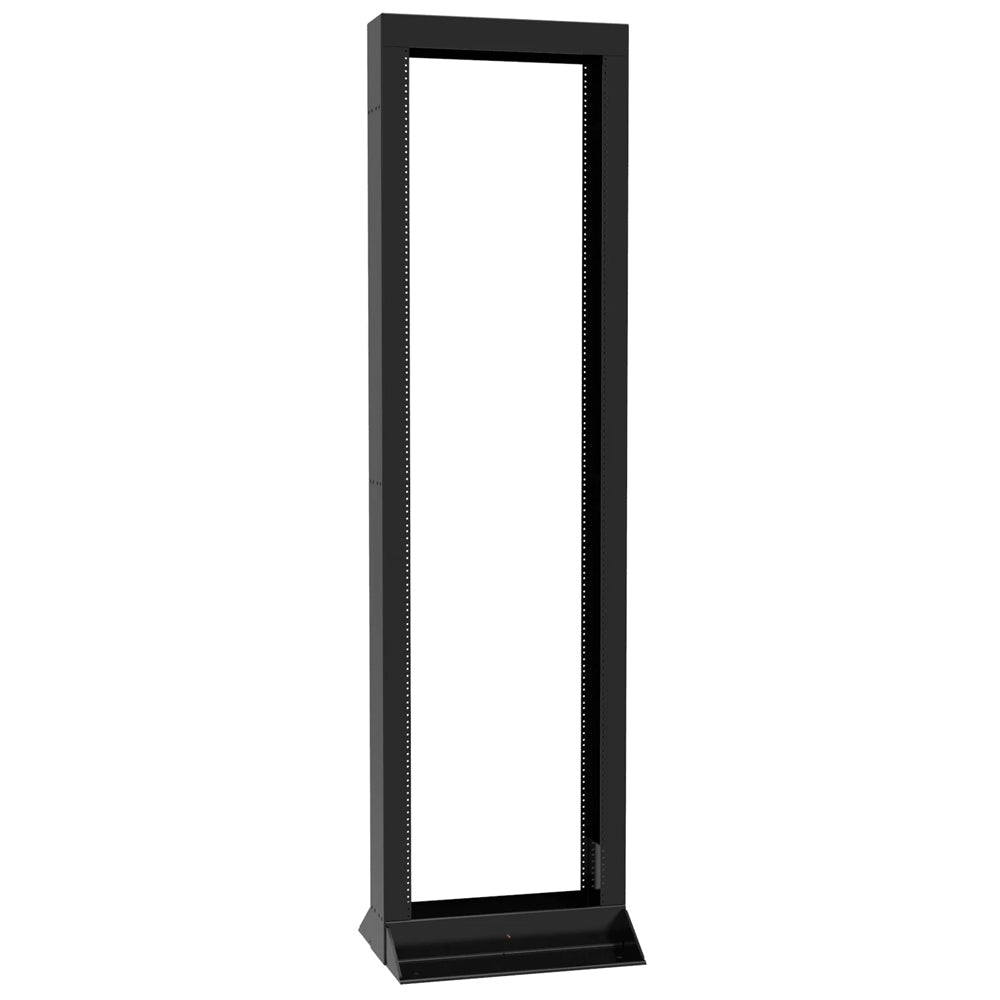

Hammond, DRZ4 Series, NEBS, Telcordia® GR-63 Zone 4 Certified, 2 Post Rack

NEBS™ Telcordia® GR-63 Zone 4 Certified 2-Post Rack DRZ4 Series

Features
  • Constructed in 10-gauge steel (rails) reinforced with structural angle base for maximum structure.
  • Rugged design engineered to perform in the most critical seismic environments.
  • Increased overall width of 22.50 inches provides additional side-to-side load strength.
  • EIA-310-D compliant 10-32 front and rear tapped (6.00” deep) rails with 19” mounting.
  • Two (2) sets of side mounting holes on side of rack allows for Hammond cable managers to be mounted facing front and rear.
  • Can also be used in ganging racks together.
  • Two (2) ground studs - one (1) located at front of structural angle base, one (1) located under top bracket.
  • Includes top bracket mounting holes compatible with top cable accessories.
  • Includes large base for freestanding support of equipment.
  • Finished in smooth black powder paint.
  • Compatible with DNRM Series.
Specifications
  1. Independently tested and certified to exceed established Seismic Zone 4 NEBS™ Telcordia® GR-63-CORE testing standards.
  2. Dynamic (seismic) suggested load capacity of 800 lb. of equipment installed and 50 lb. of simulated cable weight on the top when secured using C4K-Z4 seismic bolt down kit.
  3. RoHS Compliant.
  4. Manufactured in North America.
  5. Additional sizes also available.
