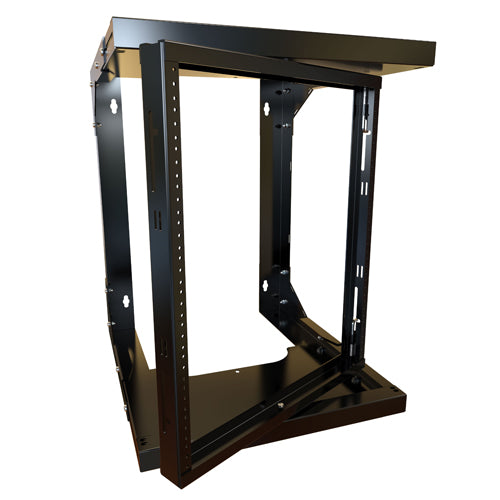

The Hammond Wall Mount Rack (HWMR) series was designed to easily mount network equipment in IT environments with limited floor space. Unlike similar racks, Hammond has integrated both depth adjustment and pivoting swing out capabilities in one rugged open rack system. Available in 12U, 20U, 24U and 32U rack unit options the HWMR can easily adjust in depth from eighteen to twenty-four inches to accommodate a wide range of equipment sizes.
Constructed of heavy duty 12-gauge steel (braces and rack rail); 16-gauge steel (other body components).
EIA compliant square-hole rails with rail unit space markers.
Rack frame pivots on center providing convenient equipment access without exceeding the rack footprint.
Adjustable variable depth from 18” to 24” using slots for easy set-up and adjusting.
Side and rear cable access with multiple tie points for cable management.
Finished in textured black powder paint.
Ships un-assembled in a flat pack for easy handling and shipping protection.
Tested to nearly double the suggested load rating of 220 lbs.
Manufactured in North America.
Included in the Box
HWMR Components and assembly hardware.
Wall mounting template for easy installation. (Wall mounting hardware not included)
Fifty (50) pack of 10-32 screws and cage nuts.
