C2F197023BK1

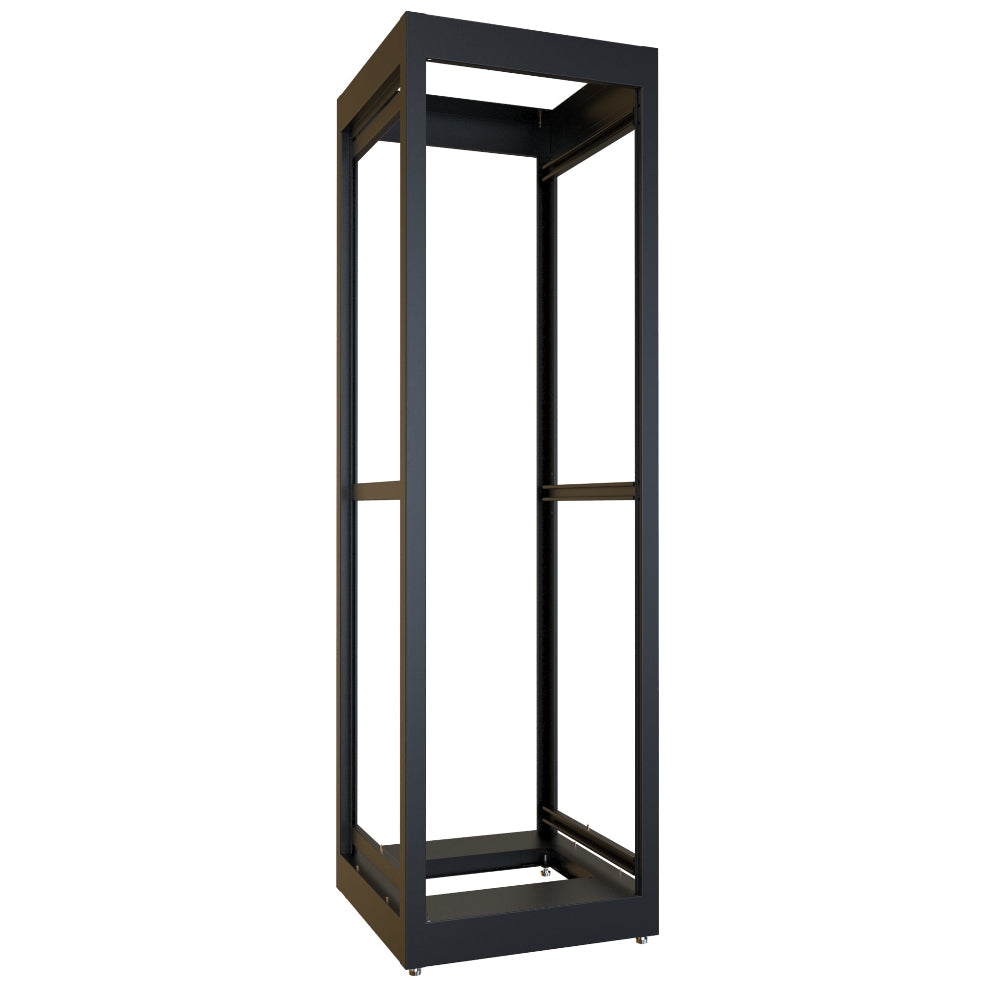

Hammond, C2 Series, Modular Equipment Cabinet System 77x23x23 40U

Hammond Modular Equipment Cabinet System C2 Series


Features
  • Constructed in:
    • 14-gauge steel (body)
    • 16-gauge steel (doors and side panels)
  • EIA-310-D compliant 10-32 tapped or square hole punched rails with permanent rack unit labels.
  • Overall width of 23.00" (584 mm) maintains a standard 19.00" panel width.
  • Panel rails are NOT included.

Specifications
  • Infinite-depth setting using C-channel struts.
  • Zinc-plated mounting rails provide superior surface areas for equipment grounding.
  • Four (4) leveling feet are included with support for optional casters.
  • Grounding studs provided on frame as well as side panels and doors.
  • Tested to nearly double the suggested load rating of 1,500 lbs.
  • RoHS Compliant.
  • Manufactured in North America.
