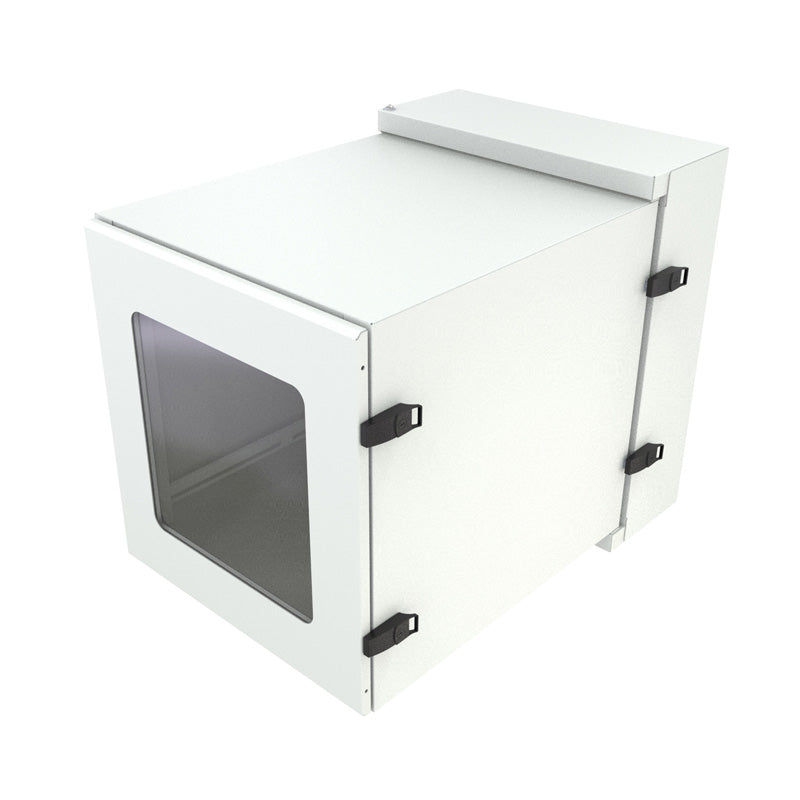

Hammond NWC12U2436WNLG Swing-Out Sectional Wall Mount Rack Cabinet NWC Series

Spec Sheet

Features

• Dual access to equipment via the double hinge design.
• The main body can be installed to swing from left-to-right or right-to-left.
• Available in three options:
  • No Climate Control "N" comes with no cutouts included.
  • Filter-Fan "F" comes with a factory installed filter-fan, exhaust filter and gland plate for additional filter-fan and rain hood kit.
  • Air Conditioner "A" comes bundled with an air conditioner (shipped inside of cabinet) along with a cord.
• All options are available with a solid or window door.
• Allows for 120 degrees of access to both the front and rear of equipment, allowing for easy maintenance.
• The heavy-duty rear pan is constructed in 14-gauge welded steel and features a hinge pin for easy installation.
• A heavy-duty wall mounting back pan can be used for cable entry.
• The rear of the enclosure include external mounting feet.
• Two (2) pairs of adjustable depth threaded 10-32 EIA-compliant rack rails.
  • Includes starter pack of SCREW1032-50
• Bonding studs are provided on the door, body and back pan.
• Dedicated bonding and grounding points that also provide drill-less mounting of electrical utility boxes. Ground Cable Kit is sold separately.

Specifications

• Constructed in 14-gauge steel.
• Window door constructed with UV-resistant polycarbonate material.
• Independently tested to IEC 60529 and IP54
• Load rated for up to 350 lbs (158 kg).
• Seismic rated up to 200 lbs (90.72 kg) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10.
• Rack rails are drilled and tapped 10-32 to EIA 19" standards and are finished in a smooth powder coat.
• Finished in a textured RAL7035 light gray or RAL9005 black powder coat.
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.
