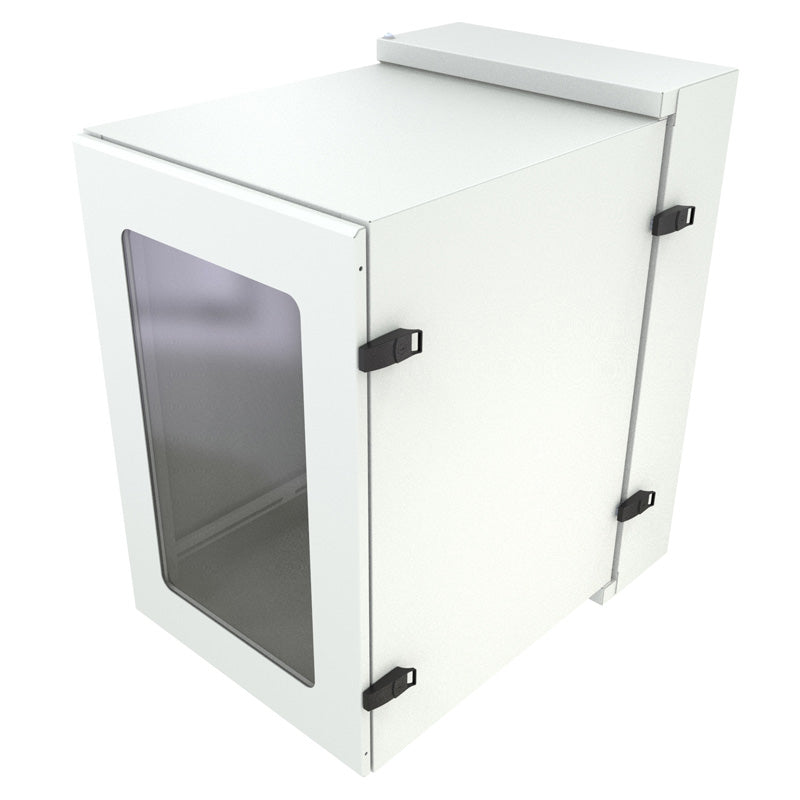

Hammond NWC Series Swing-Out W/Mount Cabinet Window Door L/Gray 18U


Hammond - NWC18U2436WNLG - Swing-Out Sectional Wall Mount Rack Cabinet NWC Series

Spec Sheet


  • Dual access to equipment via the double hinge design.
  • The main body can be installed to swing from left-to-right or right-to-left.
  • Available in three options:
    • No Climate Control "N" comes with no cutouts included.
    • Filter-Fan "F" comes with a factory installed filter-fan, exhaust filter and gland plate for additional filter-fan and rain hood kit.
    • Air Conditioner "A" comes bundled with an air conditioner (shipped inside of cabinet) along with a cord.
  • All options are available with a solid or window door.
  • Allows for 120 degrees of access to both the front and rear of equipment, allowing for easy maintenance.
  • The heavy-duty rear pan is constructed in 14-gauge welded steel and features a hinge pin for easy installation.
  • A heavy-duty wall mounting back pan can be used for cable entry.
  • The rear of the enclosure include external mounting feet.
  • Two (2) pairs of adjustable depth threaded 10-32 EIA-compliant rack rails.
    • Includes starter pack of SCREW1032-50
  • Bonding studs are provided on the door, body and back pan.
  • Dedicated bonding and grounding points that also provide drill-less mounting of electrical utility boxes. Ground Cable Kit is sold separately.


  • Constructed in 14-gauge steel.
  • Window door constructed with UV-resistant polycarbonate material.
  • Independently tested to IEC 60529 and IP54
  • Load rated for up to 350 lbs (158 kg).
  • Seismic rated up to 200 lbs (90.72 kg) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10.
  • Rack rails are drilled and tapped 10-32 to EIA 19" standards and are finished in a smooth powder coat.
  • Finished in a textured RAL7035 light gray or RAL9005 black powder coat.
  • TAA-compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.
