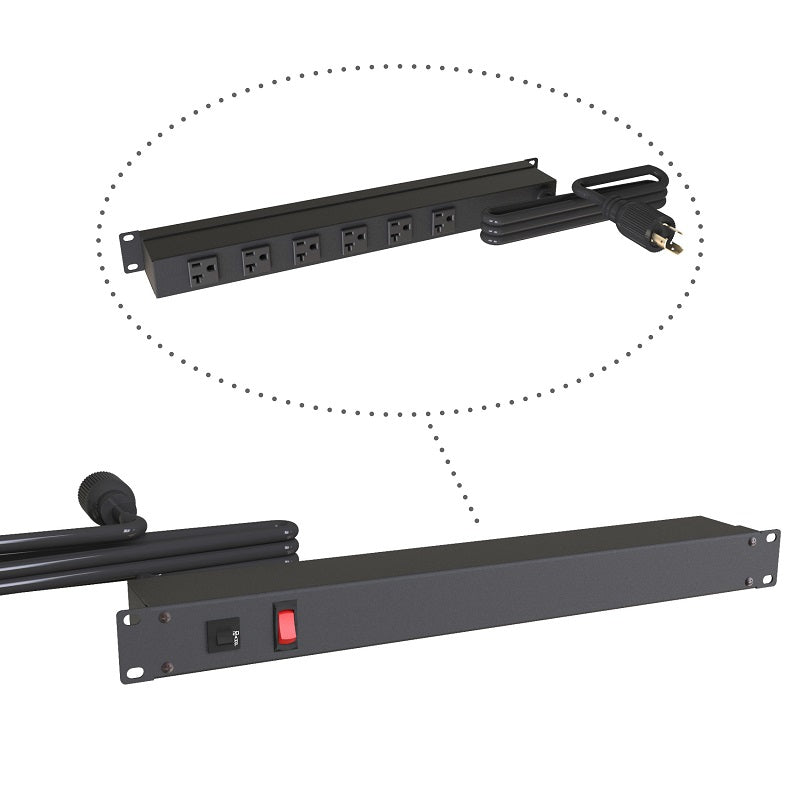

Rack Mount Basic PDU 1589-RF-RR Series

20A Single-Phase 125V - Front or Rear Facing 5-15/5-20R Outlets

Spec Sheet

Features

• Designed for power distribution from front or rear of the unit.
• 1U horizontal 19" rackmount installation.
• Available with on/off switch or red pilot light to indicate power on.

Specifications

• Heavy duty 12 gauge wire cord - 12/3 SJT type for extreme temperature ranges and integral molded plug.
• Heavy-duty black receptacles rated for 20A, 125VAC service (NEMA 5-20R, Single T-Slot).
• Plug types available are NEMA 5-20P straight blade or NEMA L5-20P locking type.
• Includes 20 Amp, 125 VAC circuit breaker to prevent accidental overload.
• Operating temperature is from -20 degrees C to +60 degrees C
• CSA certified, Standards C22.2 (No. 21-95 and No. 42-99)
• UL/cUL recognized Standard UL1363 file No. E166039 & CSA C22.2 No. 308-14
• Finished in textured RAL9005 black powder paint finish.
• TAA-compliant for GSA Schedule purchases.
• RoHS and REACH compliant.
• Manufactured in North America.
