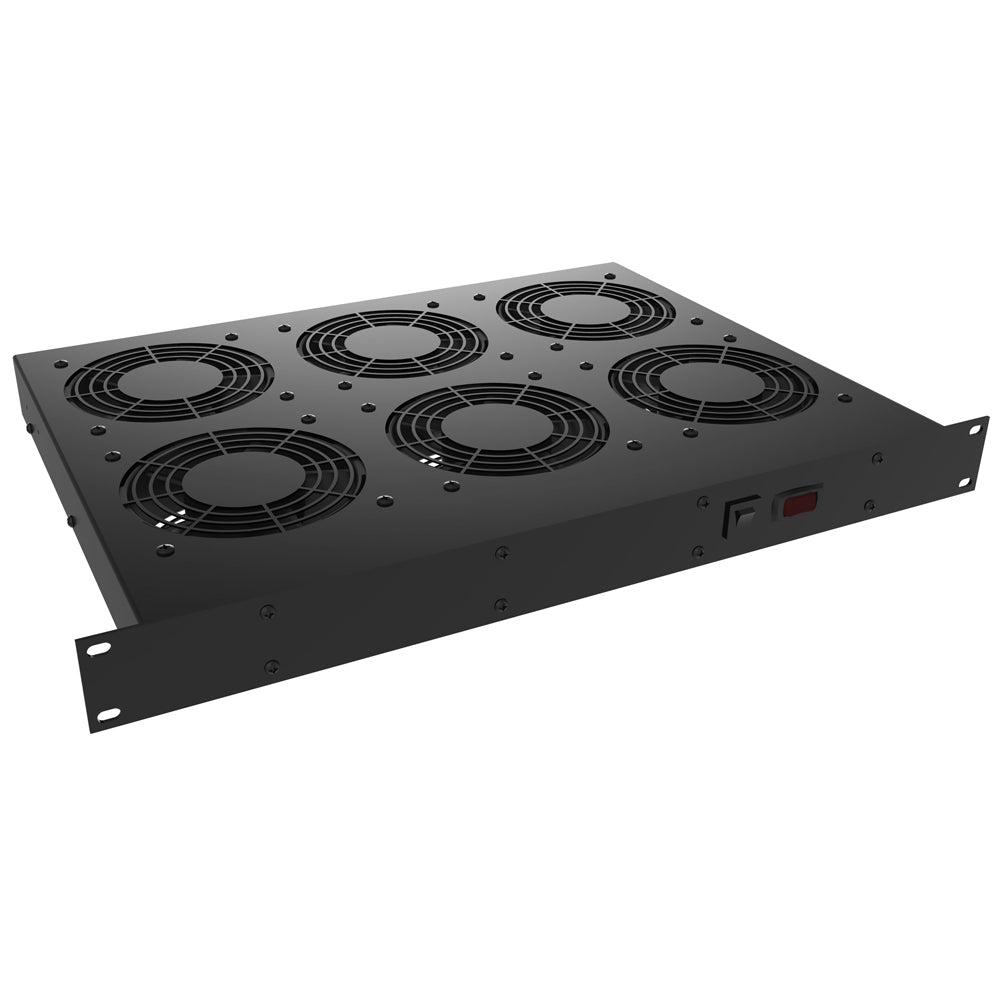

Rack Mount Fan Tray FT Series

Spec Sheet

Features

• Standard 19" rack mount
• Compact and economical rack cooling solution.
• Fan trays can be positioned at the bottom of a rack to force air through the cabinet, at the top to exhaust air out or below specific pieces of equipment for spot cooling
• Choice of two operating voltages 115VAC (or 220VAC) - both 50/60 Hz., thermally protected, ball bearing fans
• Circuit breaker protected
• Low profile 1.75" (1U) of panel space
• 115VAC versions include a 6' 14/3 STJW cord with modled 3 prong plug (NEMA 5-15P)
• 220VAC versions include an IEC input receptacle (IEC320-C14)
• Integral finger guards above and below fans
• Case width is 17"
• 6 and 9 fan units include an adjustable rear mounting bracket (mounts to rear panel rails) for extra stability
• Shipped fully assembled
• Available with or without on/off switch
• Finished in textured black powder paint
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America.
