RCHV1901031BK1

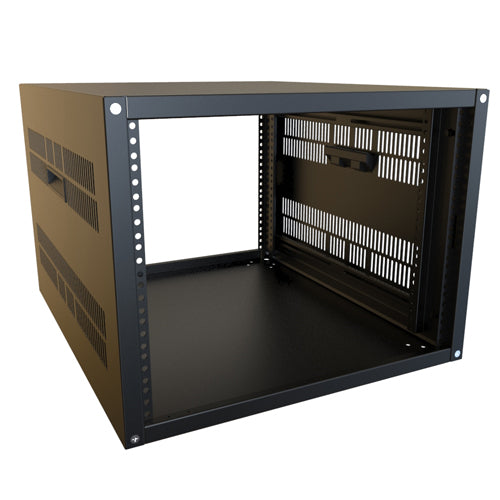

Hammond, RCHV Series, Knockdown H/Duty Vented Desktop Cabinet, 6U, 31D

Hammond Knockdown Heavy Duty Vented Desktop Cabinet RCHV Series

Features

  • Heavy duty, 16-gauge steel, 19” rack mount - desktop rack cabinet.
  • Ventilated on both sides & optimized per size to allow natural air convection.
  • For solid side versions link to our RCHS Series.
  • Panel rails are infinitely adjustable (front to back), round hole punched for 10-32 clip-nuts to full EIA hole centers.
  • Includes two pairs of rails (for rear support of heavier equipment or shelves), rubber feet, black ABS plastic handles, a starter pack of 10-32 clip nuts & matching 1421ABK black screws.
  • Simple assembly using one bolt in each corner to lock the sides to the top and bottom (hardware included).
  • Front & back lip is .585" (14 mm) so usable depth is reduced by 1.17" (30 mm).
  • Tested to nearly double the suggested load rating of 800 lbs.
  • Rugged textured powder paint finish.
  • Knockdown design ships un-assembled for easy handling and shipping protection.
  • RoHS Compliant.
  • Manufactured in North America.
