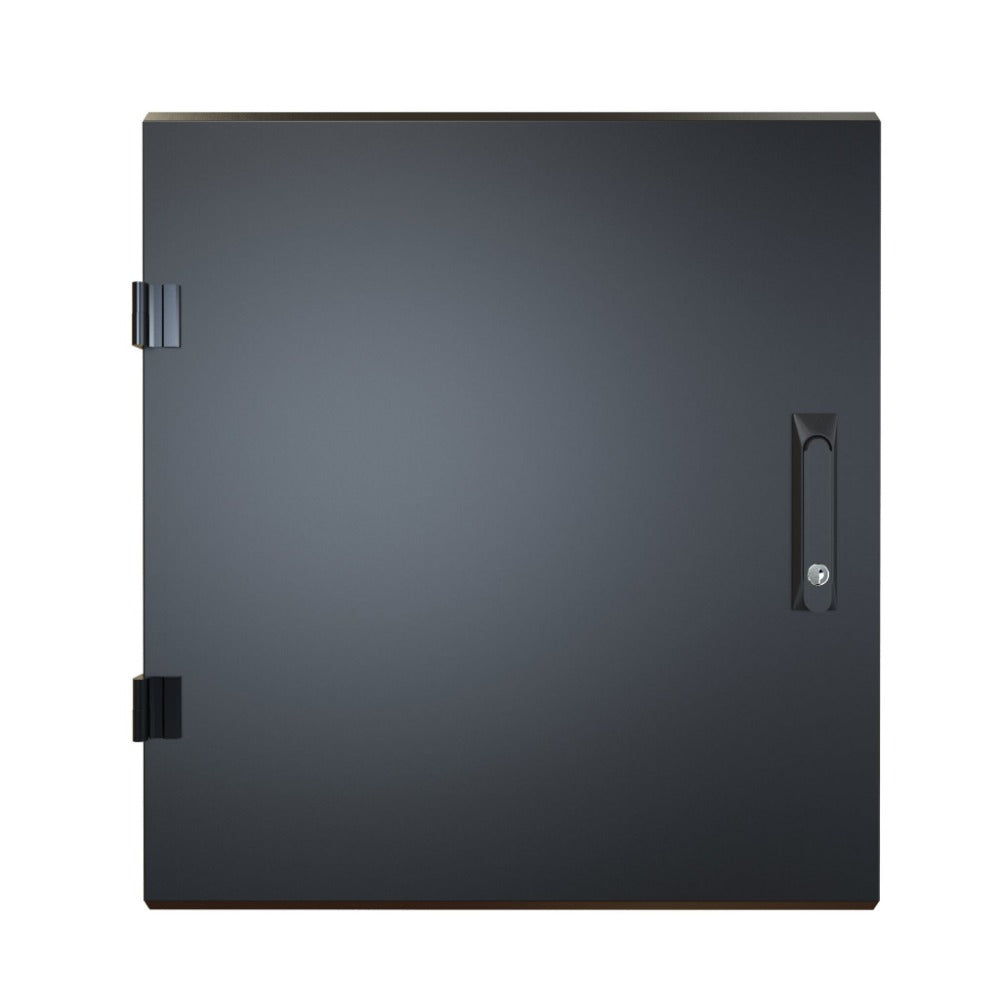

Hammond, RCK Series, SOLID DOOR 18U

RCKSD18UBK1

Hammond, RCK Series, Knockdown Cabinet

IT, Security and A/V Rack Cabinet RCK Series

Spec Sheet

Features

  • Available in six (6) heights and two (2) depths.
  • Optional locking doors are constructed in 16-gauge steel. The door(s) install in minutes and are available in solid, vented, and tinted window options.
  • Doors include a locking swing handle compatible with electronic locking handles.
  • The ready-to-assemble self-squaring cabinet body is constructed in 16-gauge steel and includes vents for optional fans on the cabinet sides.
  • Includes two (2) pairs of adjustable depth 10-32 threaded EIA compliant rack rails.
  • Both the top and bottom-rear of the cabinet feature a removable conduit knockout 1U panel. The top-rear can be used as a bonus 1U rack mounting point for equipment or rack accessories.
  • The front of the cabinet includes at both top and bottom a steel plate. When removed reveals a Decora® compatible mounting point.
  • Numerous cable tie-off points are included for front-to-rear cable management.
  • Cabinet top includes solid top panel and conduit knockouts for additional cable entry.
  • Cabinet base also includes mounting holes for optional casters or levelling feet.
  • Both top and cabinet bottom includes an opening compatible with interchangeable "1923" sized top panels.
  • Cabinet ganging kit included.
  • Includes 50-pack of SCREW1032-50 screws.

Specifications

  • Cabinet frame constructed in 16-gauge steel.
  • Mounting rails constructed in 12-gauge steel.
  • Top-Rear of cabinet included 3.00", 2.50” and 2.0” knockouts for the conduit.
  • Rear 1U panels include 1.375", 1.125" and 0.675" knockouts.
  • Include multiple bonding and grounding points.
  • Load rated for up to 1,050 lbs (476 kg). Rolling caster load rated for up to 600 lbs (272 kg)
  • Finished in textured RAL9005 black powder paint.
  • TAA-compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.
