Hammond, RCK Series, WINDOW DOOR 42U

Hammond, RCK Series, Knockdown Cabinet

IT, Security and A/V Rack Cabinet RCK Series

Spec Sheet

Features

• Available in six (6) heights and two (2) depths.

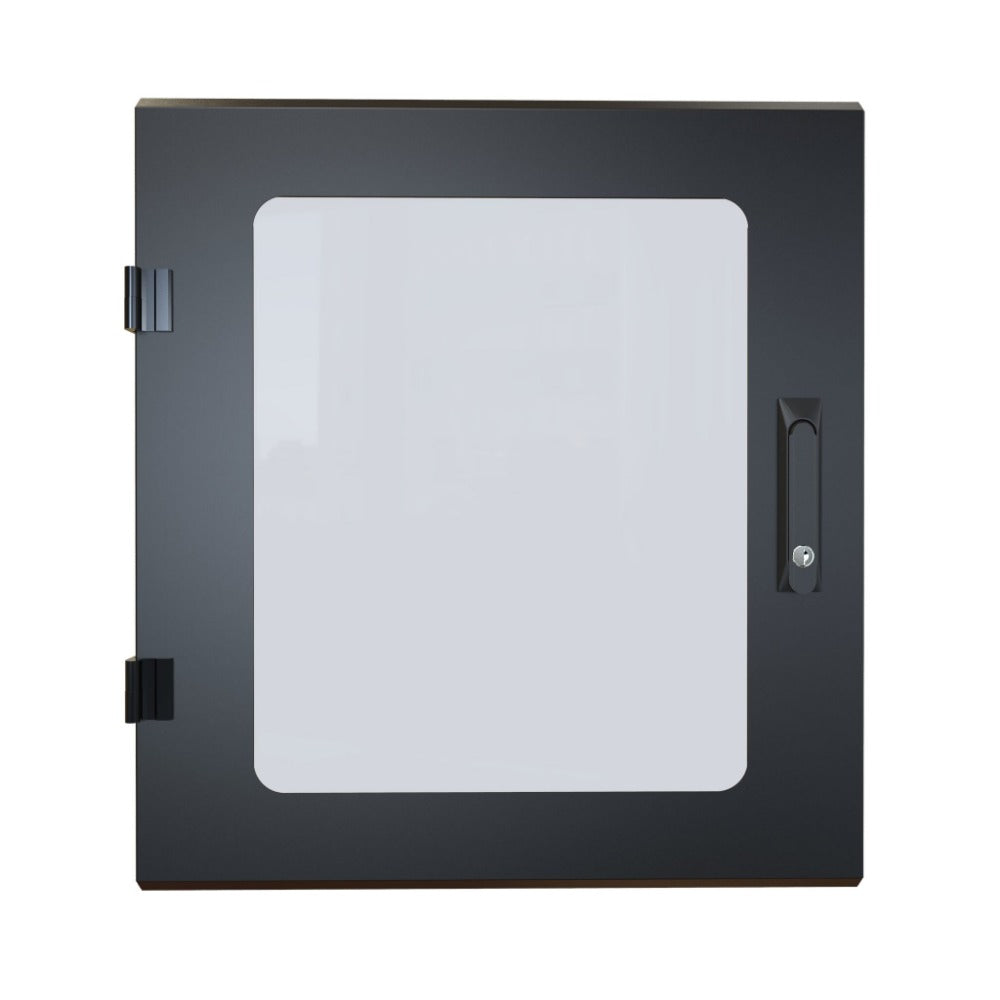

• Optional locking doors are constructed in 16-gauge steel. The door(s) install in minutes and are available in solid, vented, and tinted window options.
• Doors include a locking swing handle compatible with electronic locking handles.
• The ready-to-assemble self-squaring cabinet body is constructed in 16-gauge steel and includes vents for optional fans on the cabinet sides.
• Includes two (2) pairs of adjustable depth 10-32 threaded EIA compliant rack rails.
• Both the top and bottom-rear of the cabinet feature a removable conduit knockout 1U panel. The top-rear can be used as a bonus 1U rack mounting point for equipment or rack accessories.
• The front of the cabinet includes at both top and bottom a steel plate. When removed reveals a Decora® compatible mounting point.
• Numerous cable tie-off points are included for front-to-rear cable management.
• Cabinet top includes solid top panel and conduit knockouts for additional cable entry.
• Cabinet base also includes mounting holes for optional casters or levelling feet.
• Both top and cabinet bottom includes an opening compatible with interchangeable "1923" sized top panels.
• Cabinet ganging kit included.
• Includes 50-pack of SCREW1032-50 screws.

Specifications

• Cabinet frame constructed in 16-gauge steel.
• Mounting rails constructed in 12-gauge steel.
• Top-Rear of cabinet included 3.00", 2.50” and 2.0” knockouts for the conduit.
• Rear 1U panels include 1.375", 1.125" and 0.675" knockouts.
• Include multiple bonding and grounding points.
• Load rated for up to 1,050 lbs (476 kg). Rolling caster load rated for up to 600 lbs (272 kg)
• Finished in textured RAL9005 black powder paint.
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.
