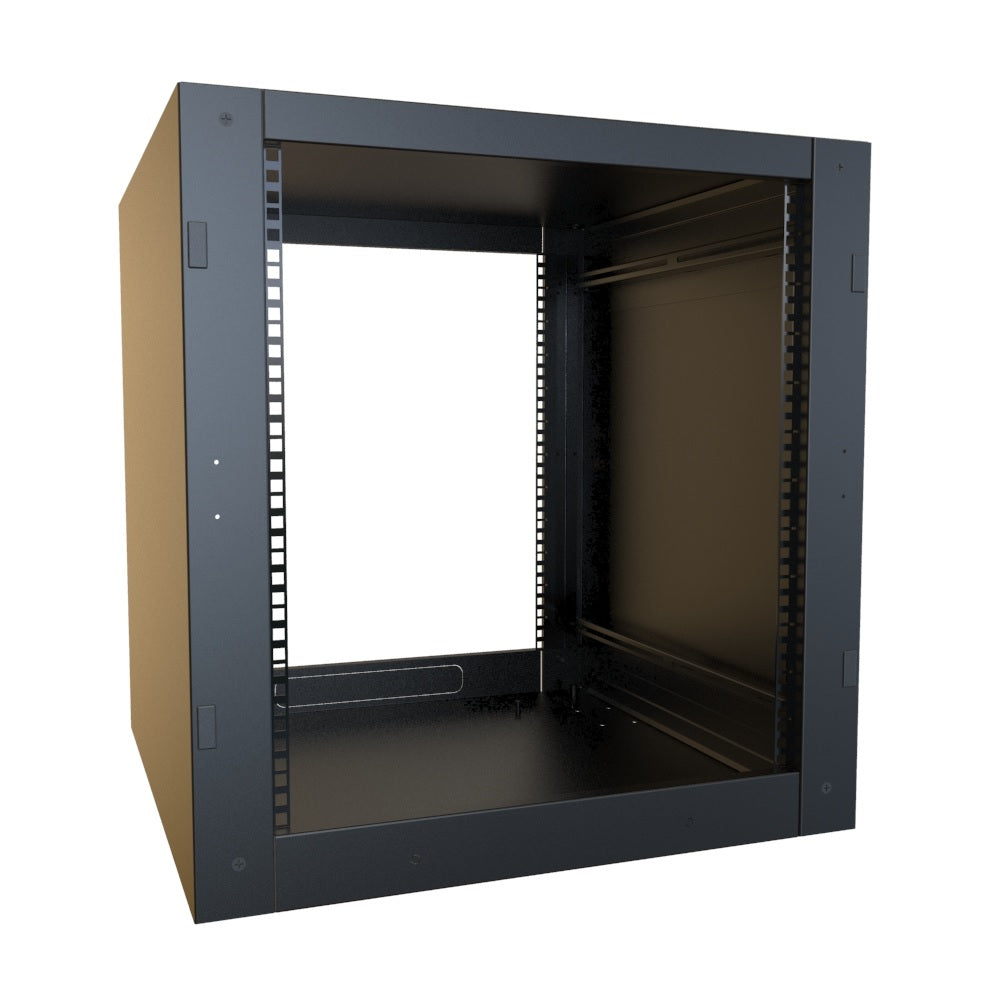

Hammond Knockdown Stacking Rack
Cabinet RCSC Series Ideal for AV or IT/Server applications, the RCSC Rack
Cabinet features a stacking design that allows for up to three (3)
cabinets* to be stacked atop each other. This Rack Cabinet is fully
loaded and includes two (2) pairs of infinitely adjustable sliding EIA
square-hole rails, punch-outs for cable entry and/or fan cooling and
comes in a variety of sizes and depths.
The unique stacking feature enables your cabinet space to grow as your
needs do. *Stack up-to three (3) 12U, two (2) 24U or one (1) of each
cabinet atop each other using the required RCSCBAY baying kit. The 12U
cabinet is a great starter cabinet for any small to medium sized
Constructed in 16-gauge steel.
Includes two (2) pair of 19” EIA-310-D compliant
square-hole mounting rails with rack unit markings.
Four (4) embosses are included with support for optional
levelling feet or casters.
Grounding studs provided on body.
The top and bottom of the RCSC includes two (2) laser
knockouts (per side) for cable-entry or fans (includes gasket strip
Includes a laser knockout rear gland plate for floor-level
Finished in rugged black powder paint.
Ships un-assembled in a flat pack container for easy
handling and shipping protection.
Mounting rails are infinitely adjustable in depth and are
fabricated of heavy duty 14-gauge steel, painted smooth black.
Optional doors are available in solid, tinted acrylic with
venting (see above-left) and high airflow vented.
Snap-in hinges can be mounted without having to bolt-on
from inside the cabinet. In addition, the hinges can be mounted on the
left or right.
High airflow perforated doors for both front and rear of
the cabinet are suggested for most server applications.
Perforated doors meet server manufacturer Free-Air-Ratio
(FAR) requirements at 63%.
For 36” depth cabinet side panels include cable
Tested to nearly double the suggested load rating of 1,500
Manufactured in North America.
