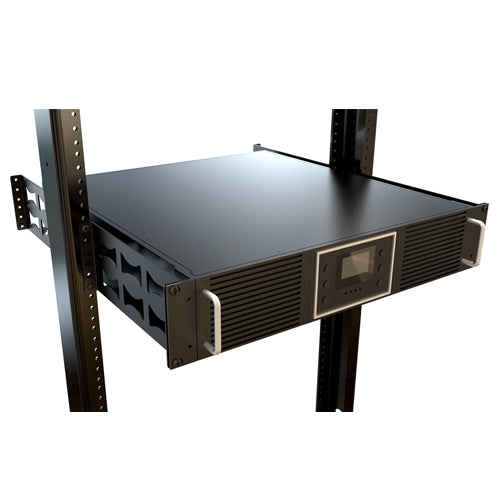

Hammond, RDAB Series, Two Post Equipment Rail Depth Adapter 31"Deep

Hammond, RDAB Series, Two Post Equipment Rail Depth Adapter

In the past, mounting deep equipment to a 2-post rack was a major challenge. Deep equipment, when not properly supported can sag and cause damage to the equipment housing. Hammond is pleased to introduce the Equipment Rail Depth Adapter (RDAB Series). Available in 15, 20, 26 and 31 inch depths, the RDAB series securely mounts to the 2-post frame positioning equipment in the center of the rack. This helps stabilize the rack while using less space than having equipment mounted behind.


  • Constructed in 14-gauge steel.
  • Available in four (4) depths.
  • Angles mount to 19 or 23 EIA rack mounting rails.
  • Designed for use with rack mounted:
    • UPS
    • Server
    • DVR
    • PC
  • Requires 2-post rack that includes front and rear mounting holes.
  • Finished in textured black powder paint.
  • Actual adapter components include:
    • Two (2) Left brackets and two (2) Right brackets
    •  Installation Guide
    • Mounting Hardware
  • Tested to nearly double the suggested load rating of 400 lbs.
  • RoHS Compliant.
  • Manufactured in North America.
