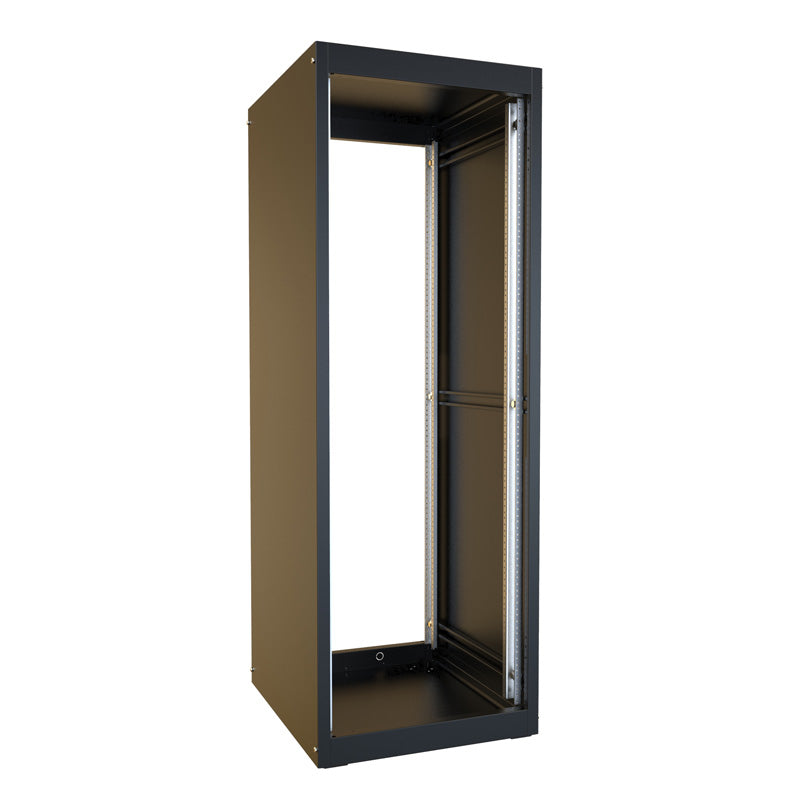

Hammond REFK Series, Knockdown Economy Rack Cabinet, 32U, 24D, Black

Test & Measurement Rack Cabinet REFK Series

Spec Sheet

Features

• C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
• Solid non-removable side panels.
• Optional flush-mounted doors with quarter-turn locks can be mounted to swing on either side.
• Knockdown design ships unassembled for easy handling, reduced freight cost, and shipping protection.
• Simple assembly using one bolt in each corner to lock the sides to the top and bottom.

Specifications

• The cabinet frame is constructed in 12-gauge steel.
• Drilled and 10-32 tapped 19" combination rails are constructed in 10-gauge steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
• Includes four (4) leveling feet.
• Removable gland plate - over 10" (254 mm) long x 1.5" (38 mm) high opening - with knockouts on the rear bottom of the rack for easy cable access.
• 1,000 lbs (454 kg) static load rating.
• Finished in textured RAL 9005 black or RAL 7035 light gray powder coat.
  • ​Complies with the Greenguard guidelines for indoor air quality.
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.
