106230

Platinum Tools, Flex Connector, Cat6A ,Shielded

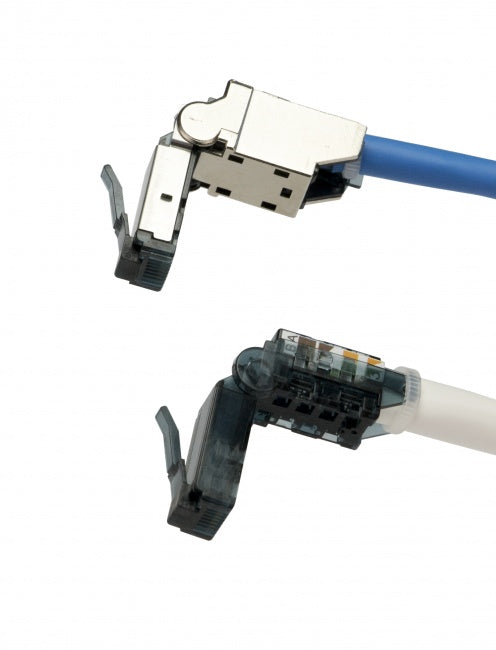

Platinum Tools,  Cat6A Flex Connector


The Cat6A Flex Connector makes Cat6A and Cat7 terminations easier than ever. The unique patented design ensures top tier performance for Cat6A and Cat7 cabling. These connectors provide a low cost, easy termination solution with high performance and superior connectivity options.

Flexible design:
- Can flex 90 degrees down
- Can flex 45 degrees up

    * Tool-less termination design
    * Minimal tools required for preparation
    * Accommodates Cat6A and Cat7 Cables up to 9.0mm and 26-22 AWG Conductors
    * Works with both solid and stranded conductors
    * Machine-precision-set contact height
    * Frequency rated up to 1GHz
    * 10-Gigabit certified
    * PoE+ rated
