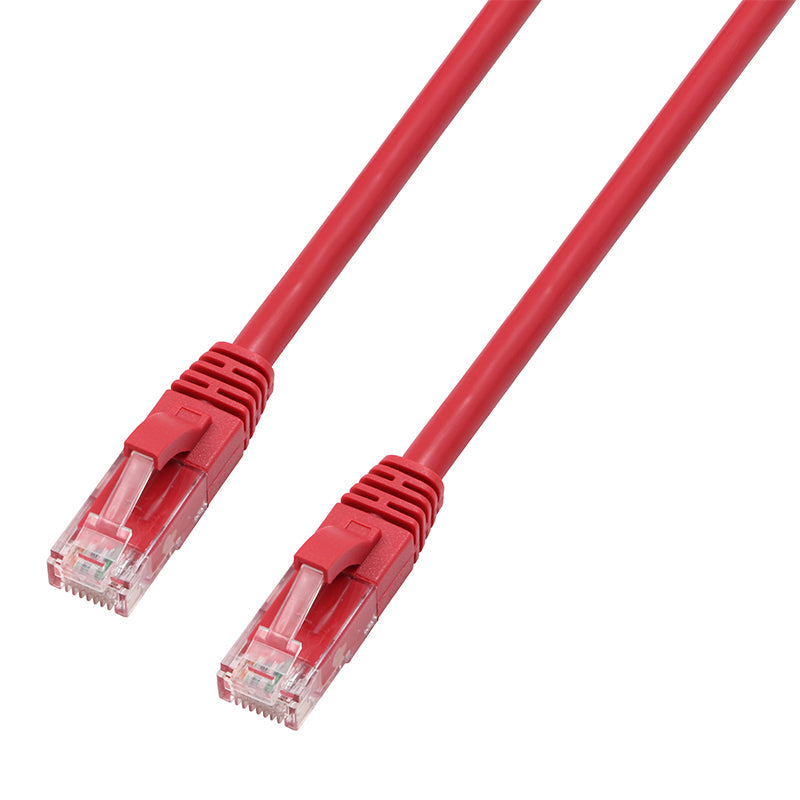

Primewired Patch cord V2, Cat6 UTP, Fluke Tested, 24AWG, Red 3 ft.

NC6V2 series Primewired Cat6 UTP, Fluke Tested 550MHz UTP AWG24 Ethernet Patch Cord

This Cat6 Snagless Ethernet cable is RJ45-male to RJ45-male. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. Patch cables come with high bandwidth of up to 550 MHz guarantees high-speed data transfer and is the perfect solution for high density server room/data center applications as well as all your networking requirements.

All PrimeWired Cat6 cables are made of 100% bare copper wire and fluke tested

FEATURES

• 550MHz rating supports higher bandwidth
• Gold-plated contacts
• Made of 24AWG 4-pair stranded 100% bare copper wires
• Connectors: RJ45 8P/8C Male
• Wiring Standard: 568B
• OD: 6.0MM

SPECIFICATIONS

• Cable Jacket Type PVC
• Connector Plating Gold Plated
• Cable Diameter 6.0mm
• Wire Gauge 24 AWG [100% Bare Copper]
• Shielding UTP (Unshielded)
• Pairs 4 Stranded
• Fire Rating CM/ CMG (FT4) Rated
• Strain Relief Assembled, Molded Boot
• Connector A RJ45 Snagless Male
• Connector B RJ45 Snagless Male
• Fluke Cat6 Patch Cable test Yes
• Speed 550MHz
• Color (*-xx) Black (-BK)/ Blue (-BU)/ Green –(GN)/ Red (-RD)/ White (-WH)/ Yellow (-YE)
