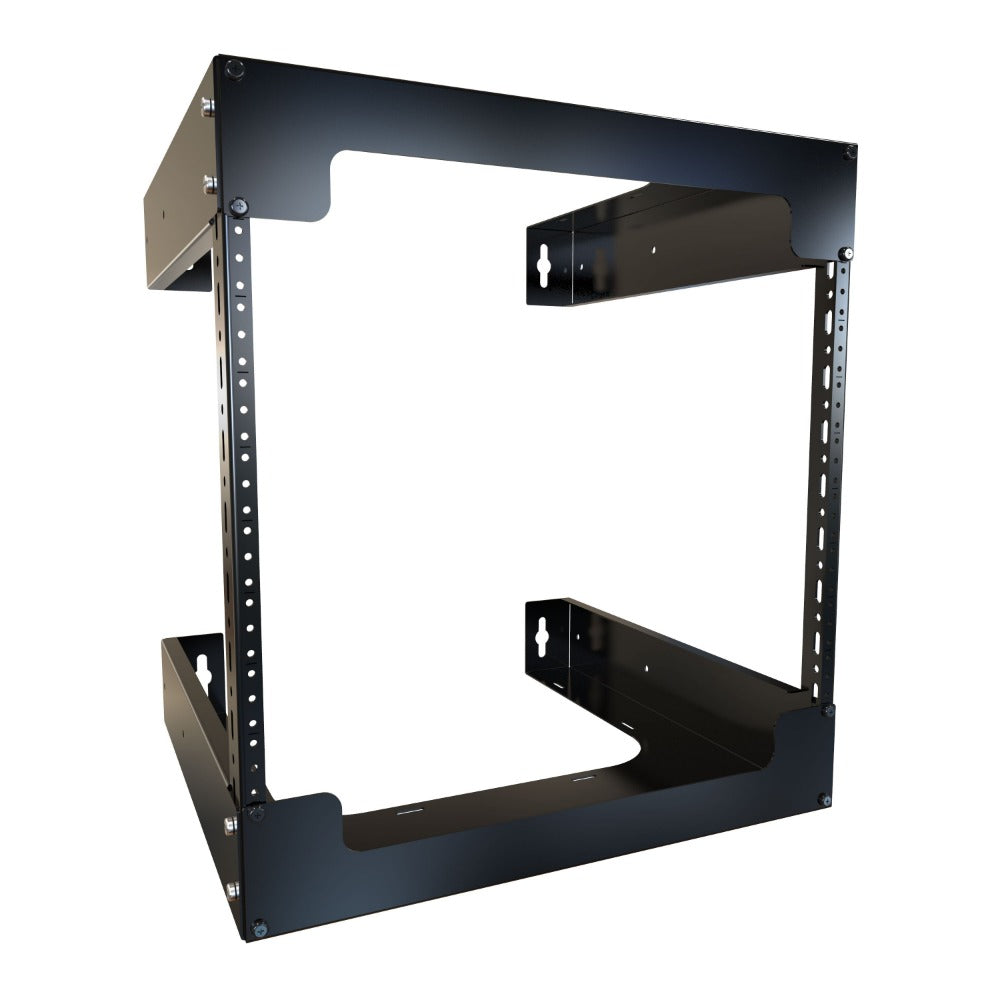

Rack Basics, RB-2PW Series, Fixed Wall Mount Equipment Rack, 8U

Rack Basics Fixed Wall Mount Equipment Rack - RB-2PW Series

Up to 200 lbs Weight Capacity


  • Constructed in 14-gauge steel (body), 12-gauge steel (rails).
  • EIA-310-D compliant 10-32 tapped rails with 19” mounting and rack unit indicators.
  • Provides 18 inches of usable depth.
  • Open-rear design can be installed over existing equipment.
  • Finished in smooth black powder paint.
  • Knockdown design ships unassembled for easy handling and shipping protection.
  • Includes starter pack of mounting hardware. (25-pack of 10-32 screws)
  • Tested up to nearly double the suggested load rating of 200 lbs (90.72 kg).
  • RoHS Compliant.
  • Manufactured in North America.
