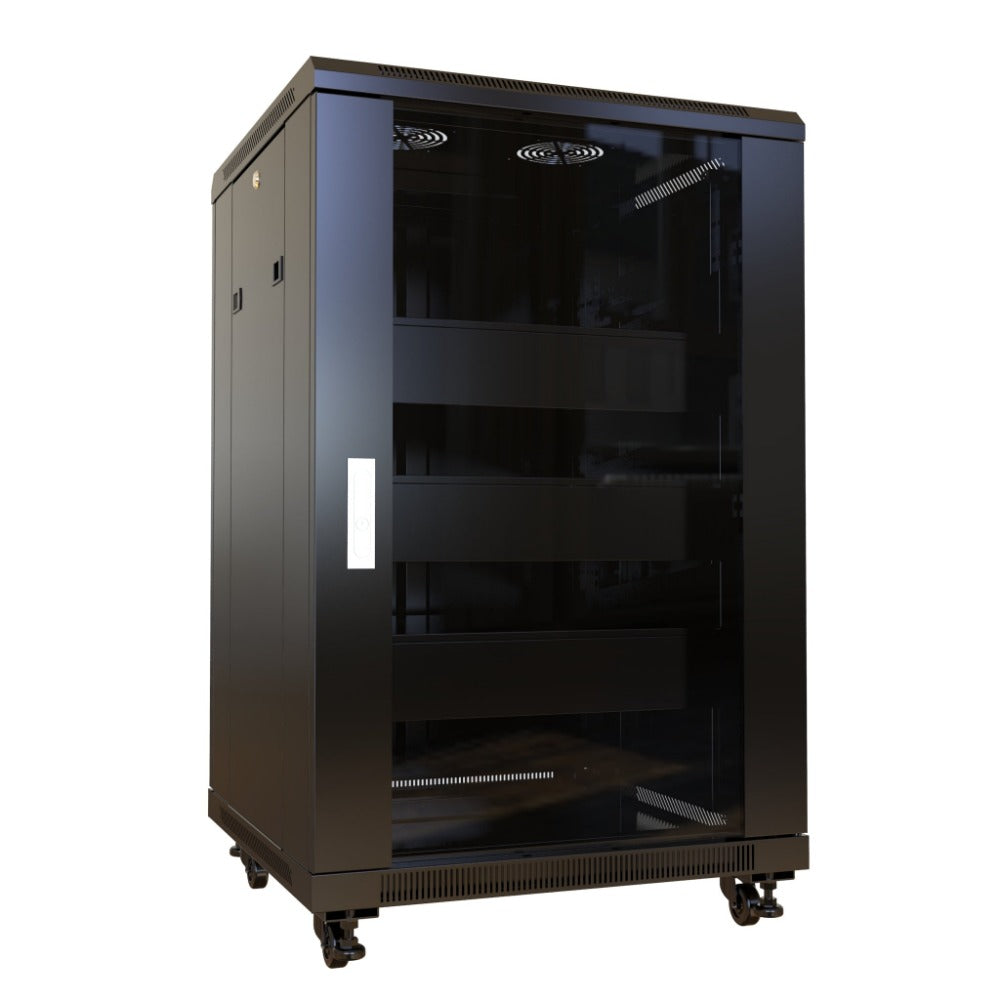

Rack Basics RB-AV Series, Audio/Visual Cabinet 18U

Rack Basics Audio/Visual Cabinet

• Specification Sheet

The RB-AV Series is a cost-effective and fully assembled enclosed rack system designed for A/V and Security applications. Fully assembled, the RB-AV Series includes pre-installed shelves, filler panels, casters and leveling feet.

Features

• Constructed in light duty 16-gauge steel.
• Includes two (2) pairs of EIA-310-D compliant square hole punched rails with 19” mounting.
• Starter pack of M5 screws and cage nuts included.
• For 10-32 hardware see the 1421CNABK Series.
• Locking tempered glass front door is opens a full 180°.
• Passive cooling vents located on top, bottom and sides.
• Includes provision for optional fans on top panel.
• Removable locking side panels.
• Removable cable access panels on cabinet top and bottom.
• Ships assembled - ready to install.

Specifications

• Open frame bottom allows raised tile floor cable and air access.
• Bottom of cabinet includes:
• Four (4) adjustable leveling feet
• Four (4) recessed casters
• Includes 2 pre-installed shelves
• Rails can adjust in depth in 25mm increments.
• Grounding studs provided on frame.
• Finished in smooth black powder paint.
• Tested to nearly double the suggested load rating of 250 lbs.
• RoHS Compliant.
