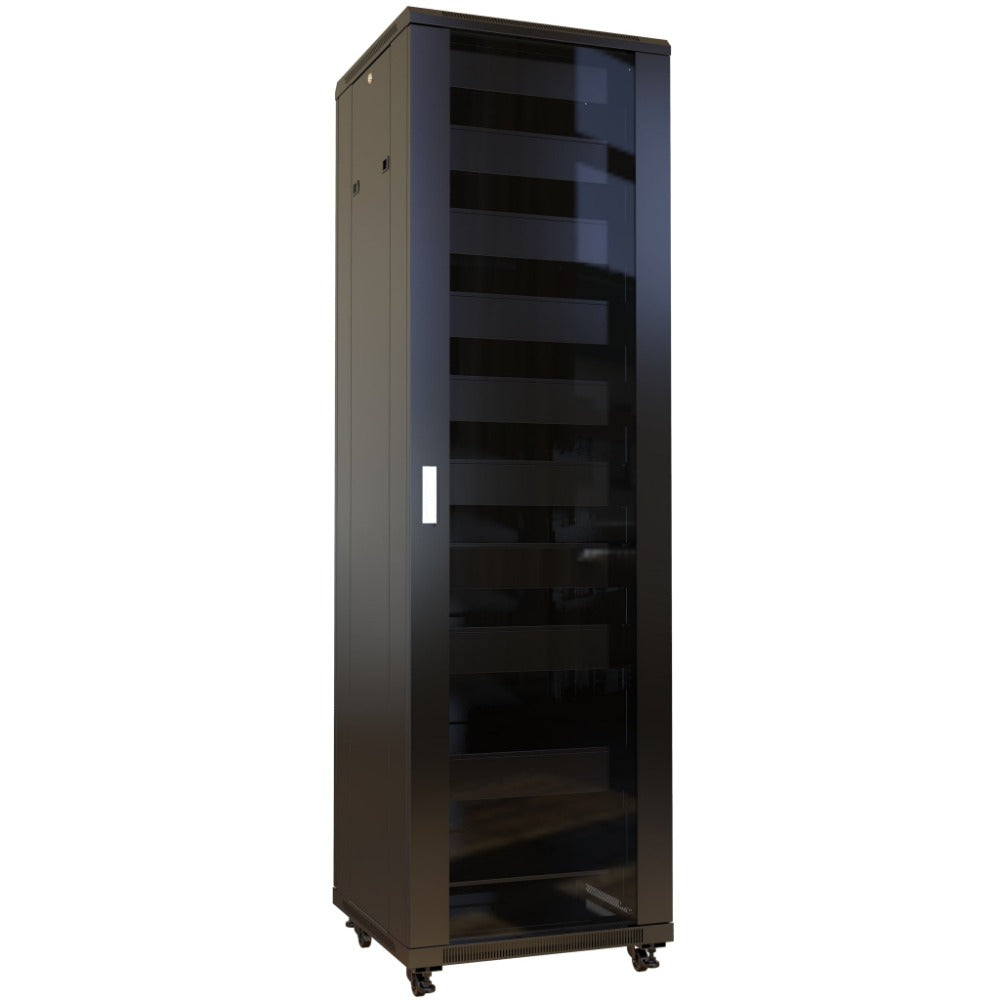

RB-AV42

Rack Basics, RB-AV Series, Audio/Visual Cabinet 42U

Rack Basics Audio/Visual Cabinet


The RB-AV Series is a cost-effective and fully assembled enclosed rack system designed for A/V and Security applications. Fully assembled, the RB-AV Series includes pre-installed shelves, filler panels, casters and leveling feet.

Features
  • Constructed in light duty 16-gauge steel.
  • Includes two (2) pairs of EIA-310-D compliant square hole punched rails with 19” mounting.
  • Starter pack of M5 screws and cage nuts included.
  • For 10-32 hardware see the 1421CNABK Series.
  • Locking tempered glass front door is opens a full 180°.
  • Passive cooling vents located on top, bottom and sides.
  • Includes provision for optional fans on top panel.
  • Removable locking side panels.
  • Removable cable access panels on cabinet top and bottom.
  • Ships assembled - ready to install.

Specifications
  • Open frame bottom allows raised tile floor cable and air access.
  • Bottom of cabinet includes:
  • Four (4) adjustable leveling feet
  • Four (4) recessed casters
  • Includes pre-installed shelves and filler/blank panels (see table below).
  • Rails can adjust in depth in 25mm increments.
  • Grounding studs provided on frame.
  • Finished in smooth black powder paint.
  • Tested to nearly double the suggested load rating of 250 lbs.
  • RoHS Compliant.

Pre-Installed Accessories
Cabinet Part No 2U Shelves
Installed
3U Shelves
Installed
2U Panels
Installed
RB-AV18 3 0 3
RB-AV27 5 0 5
RB-AV42 7 2 9
