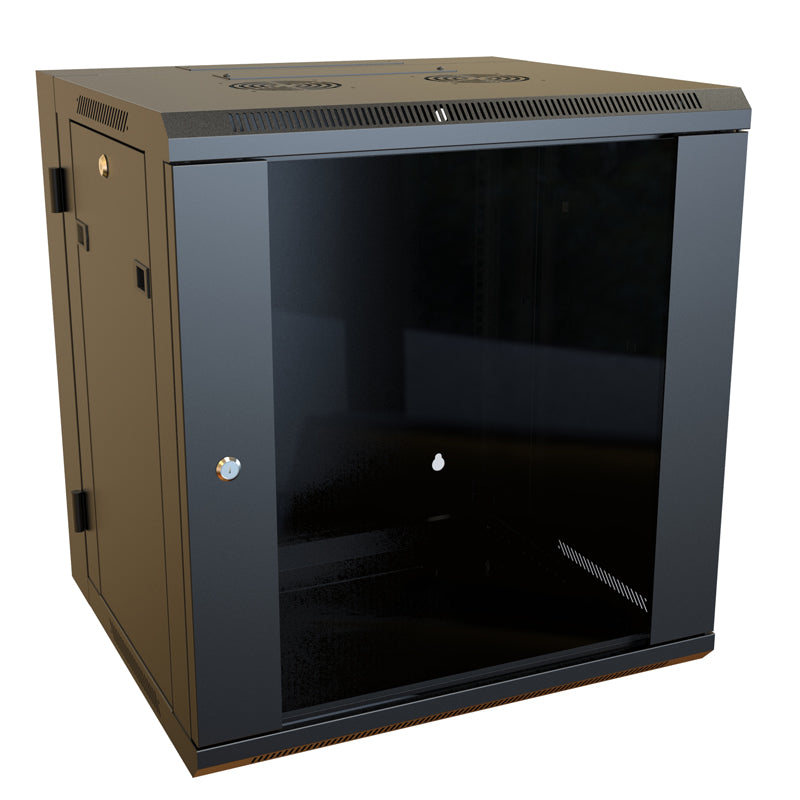

Rack Basics RB-SW Series, Economy Swing-Out Wall Mount Cabinet 18U 21.65" deep

RB-SW18

Rack Basics, RB-SW Series, Economy Swing-Out Wall Mount Cabinet

Spec sheet

Features:

  • Double-hinged for easy rear access (body swings open to 120°).
  • Constructed in light duty 16-gauge steel.
  • Includes two (2) pairs of EIA compliant square hole punched rails with 19” mounting.
    • Starter pack of (25) M6 screws and cage nuts included.
    • For 10-32 hardware, see our CAGKIT Series.
  • Rails are adjustable.
  • Includes one (1) locking lightly smoked tempered glass reversible front door (hinged on right side as standard).
  • Includes one (1) pair of locking removable side panels.
  • Front and side of frame includes venting for air flow.
  • Top, bottom and rear cable access.
  • Provision for optional fans on top panel.
  • Middle body section is not reversible, and hinges on the left side.
  • Ships assembled - ready to install.
  • Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
  • Finished in black powder paint.
  • Tested to 130 lbs (59 kg) of equipment load capacity.
  • RoHS Compliant.
